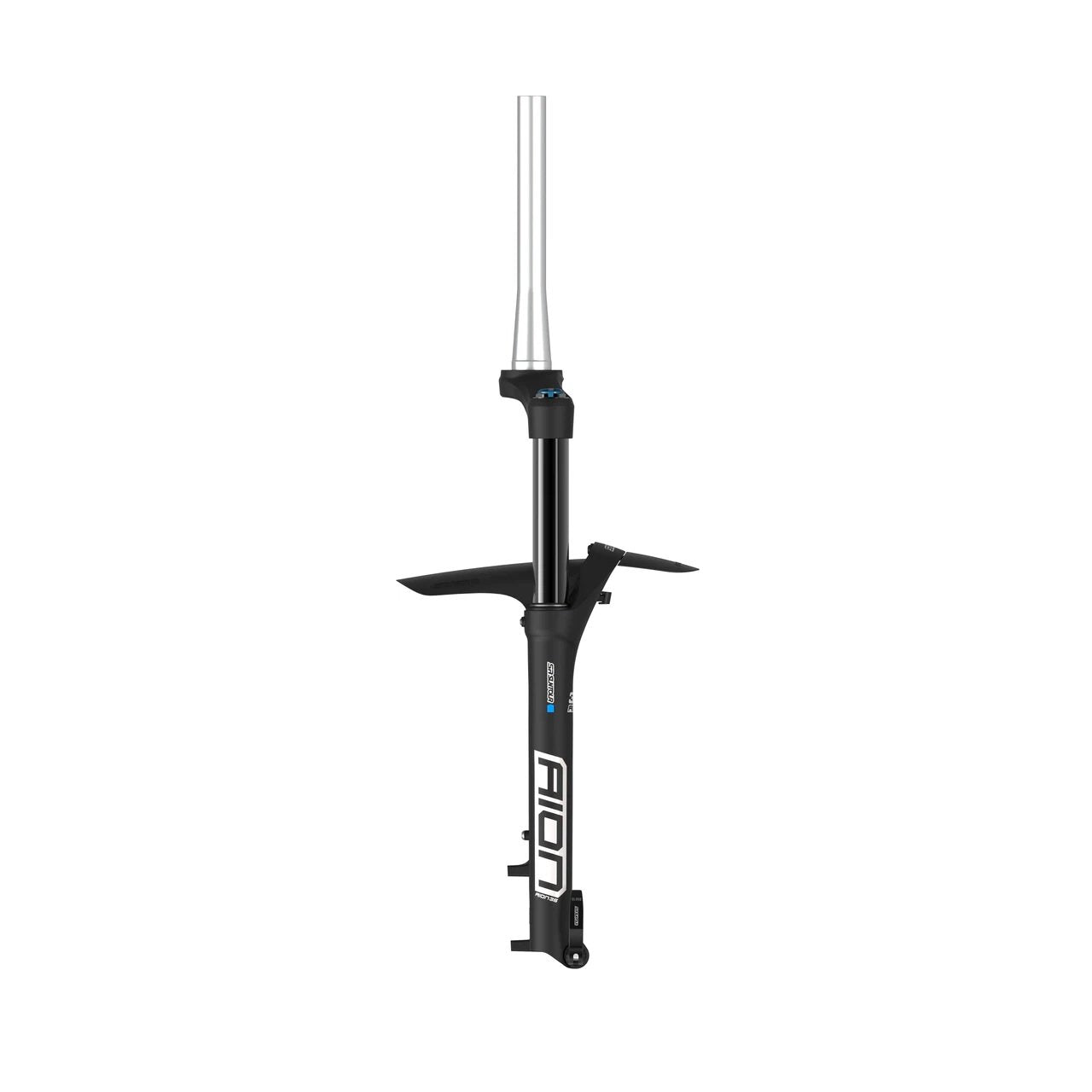

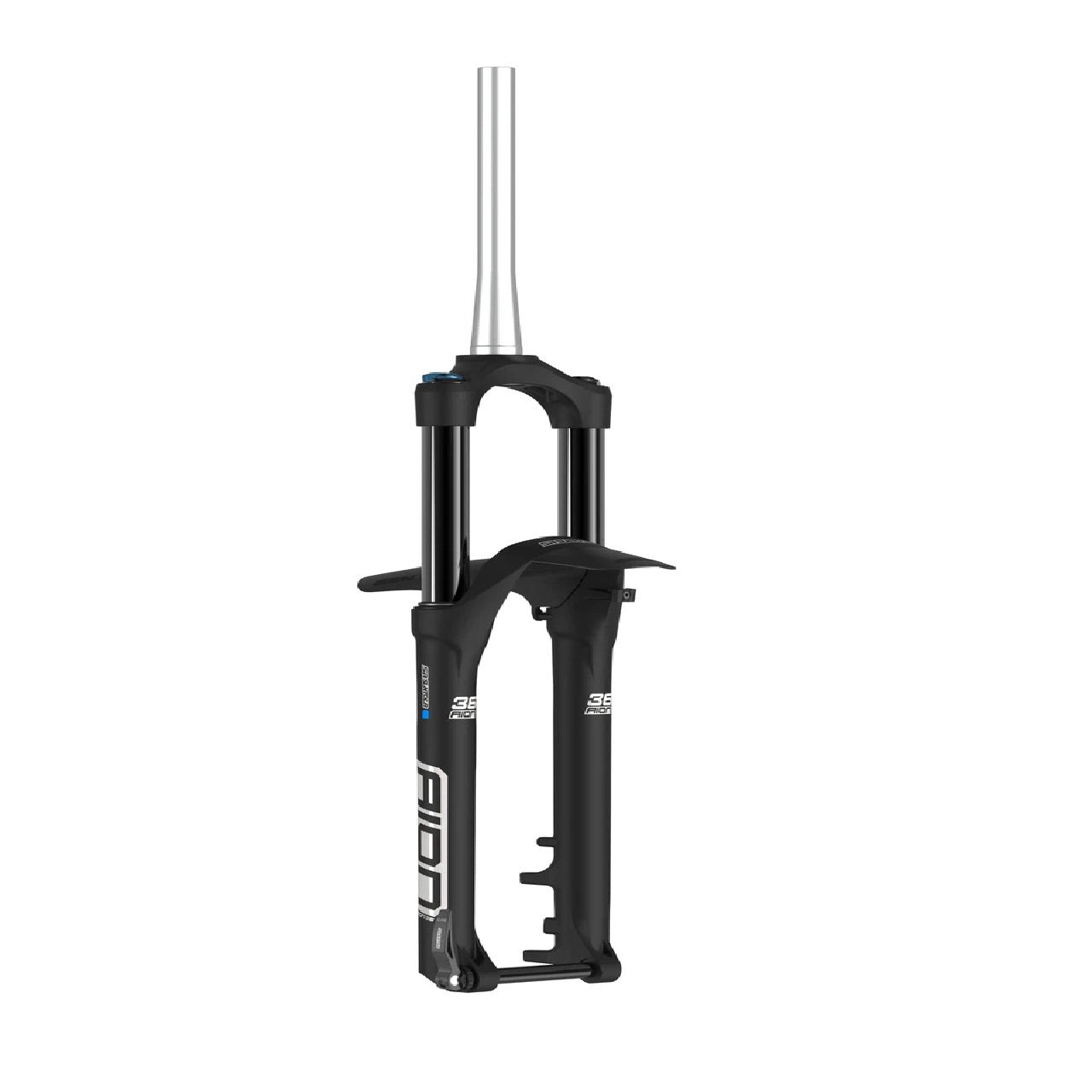

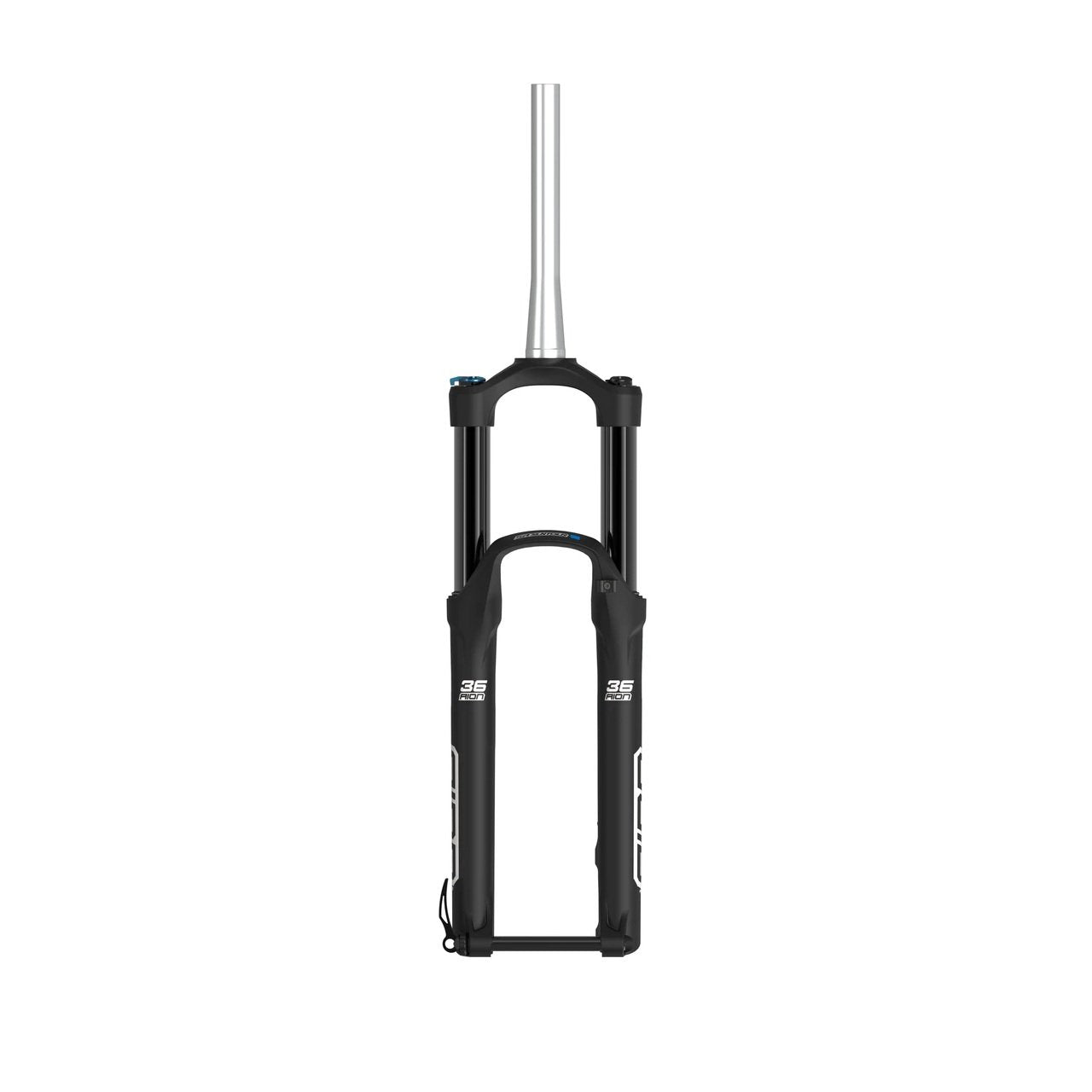

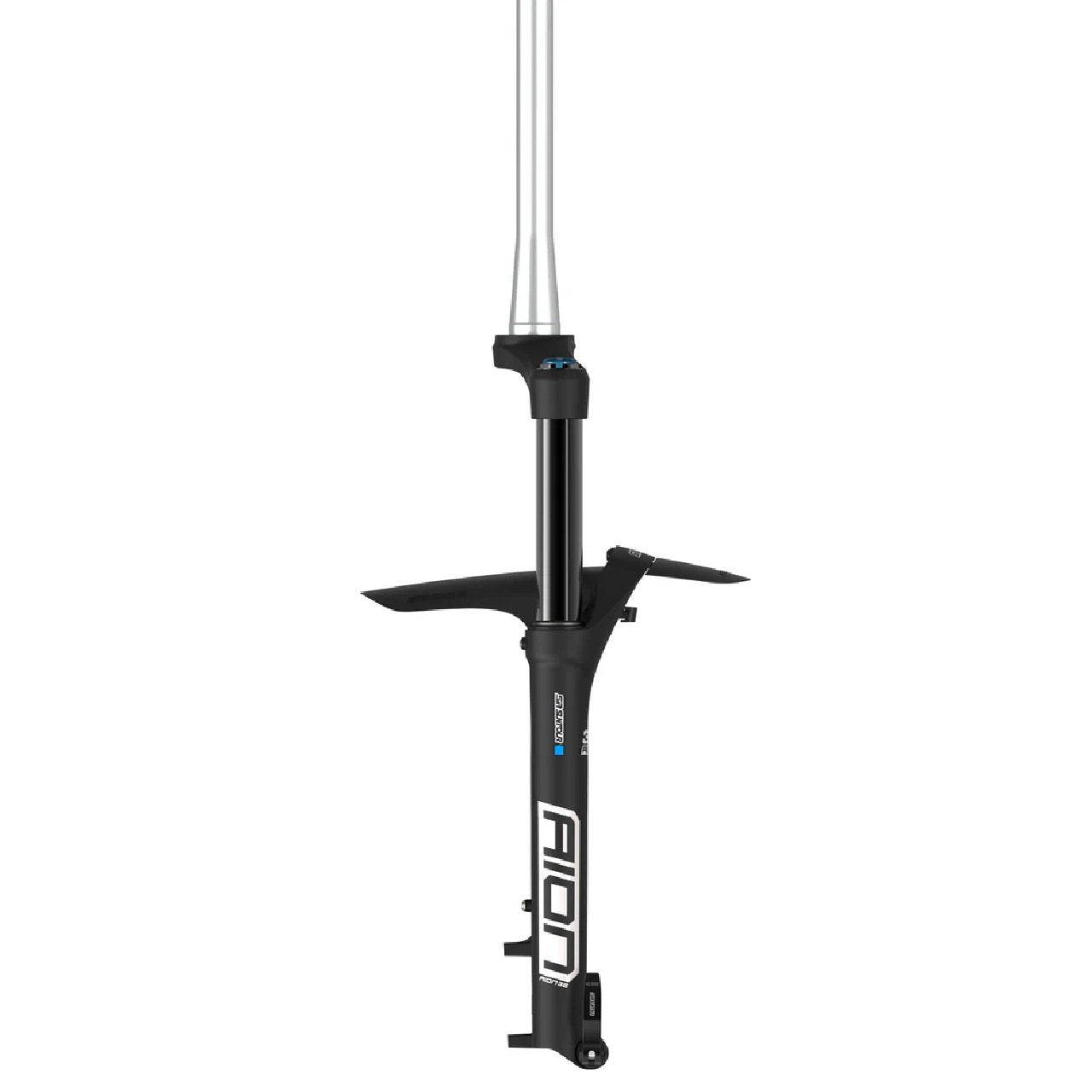

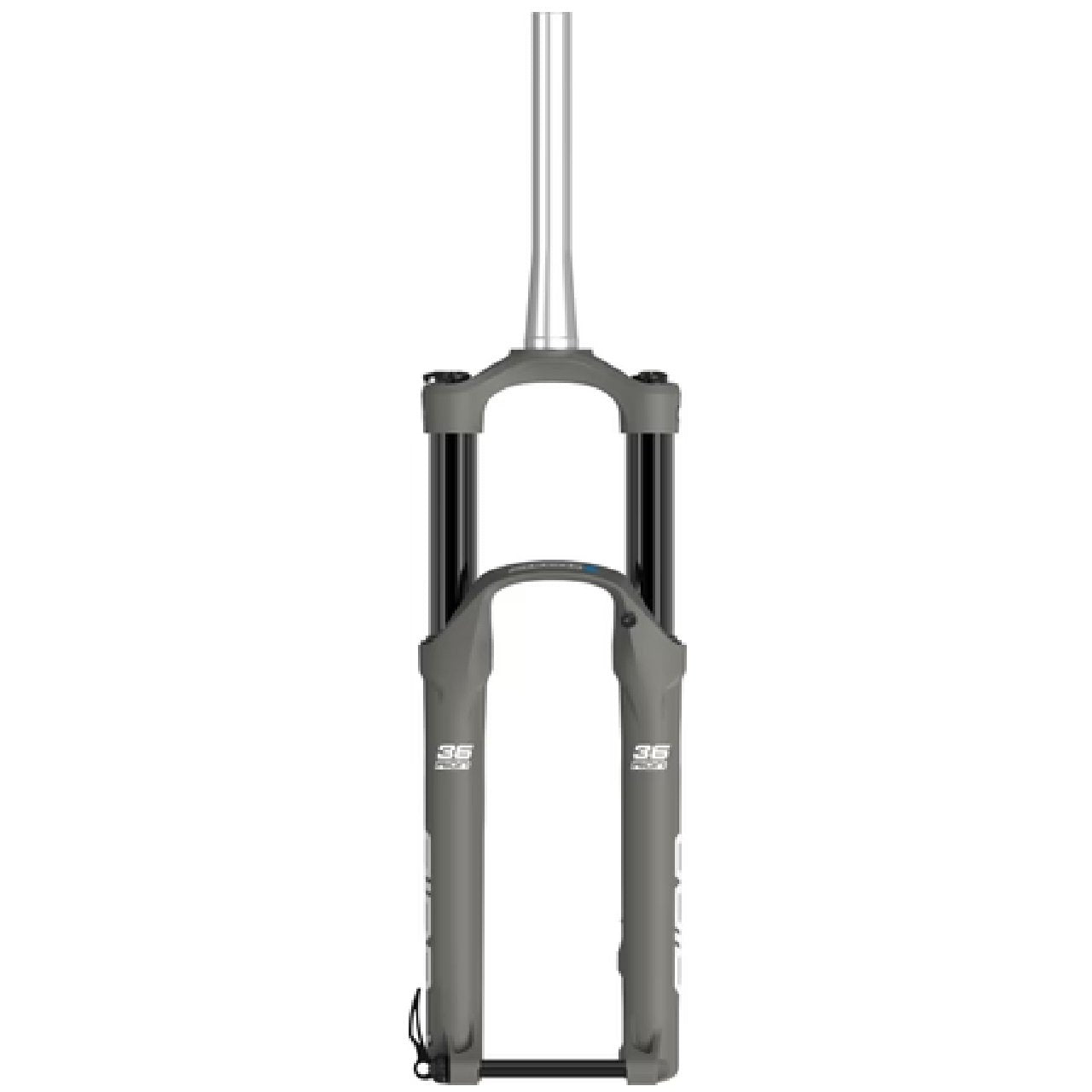

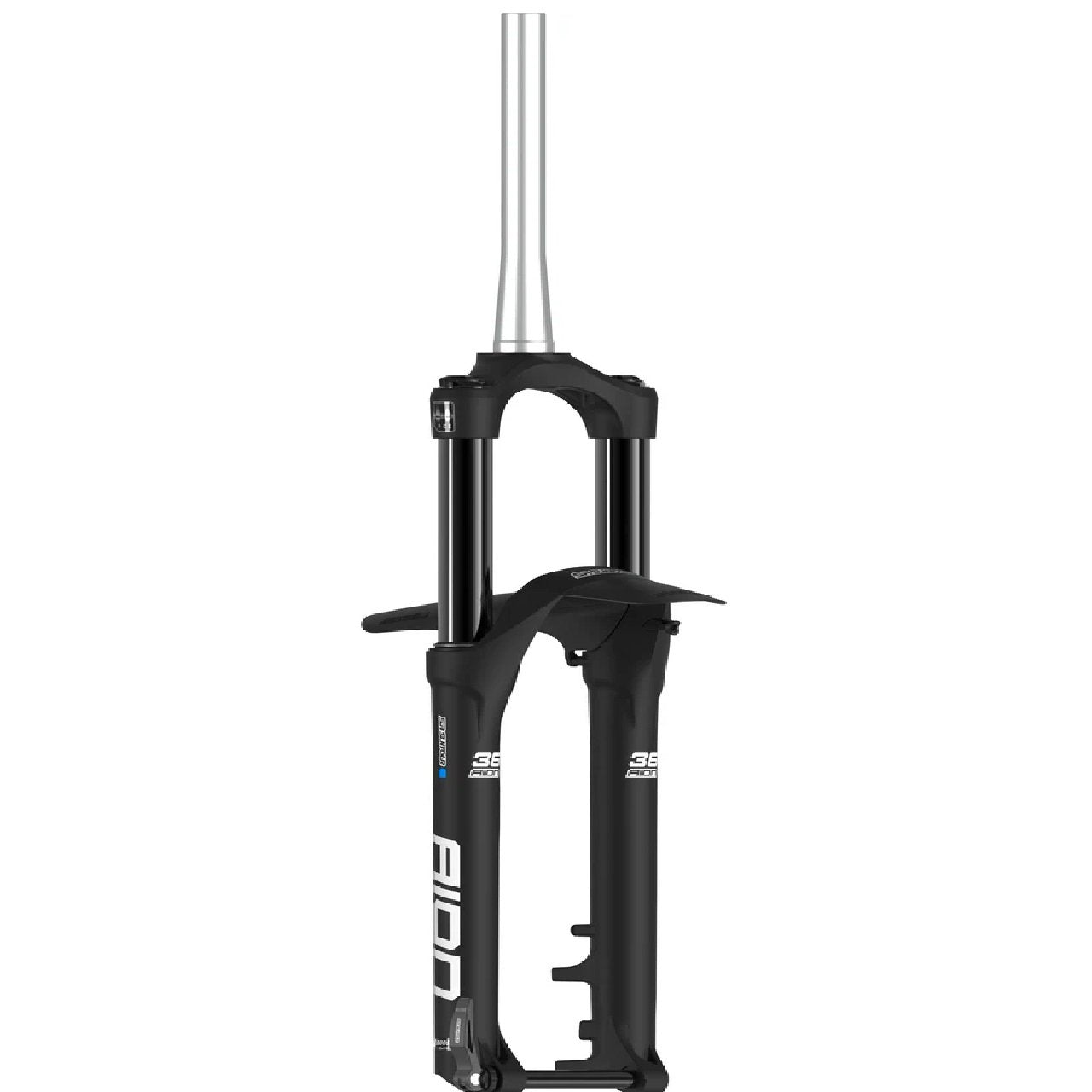

Suntour AION36 BOOST Front MTB Shock Fork

The redesigned AION is the choice for your all-mountain adventures, whether it be long back country rides, an enduro race or hitting up your local bike park. The Aion comes with a detachable fender and a 36mm chassis for stiffness, new 3CR PCS cartridge and EQ air spring.
The new Aion features an all new air negative spring system called EQUALIZER™ (EQ). In conjunction with the updated Piston Compensator System (PCS™) sealed cartridge.

• 120-130-140-150-160mm travel settings
• Adjustable travel with support tube assembly
• 3CR PCS cartridge (3 position compression & rebound adjust)
• PCS cartridge uses internal floating piston
• EQ air chamber equalizes fork for perfect set up and ride height
• Air positive chamber
• Air negative chamber
• Forged crown
• 36mm A7050 black anodized stanchion
• 15x110mm through axle
• Light weight magnesium casting
• Steerer tube AL7050 1.5-1 1/8" CTS
• 27.5 x 2.8" max tire clearance
• 29 x 2.4" max tire clearance
• 15mm Titanium QLC2 included
• Boost 15x110 Axle
• Integrated fender included
• Weight 2120g
• 220mm max rotor
• 2 year warranty
• Axle to Crown for 29 at 160 travel = 580mm
• Fork offset 44mm
