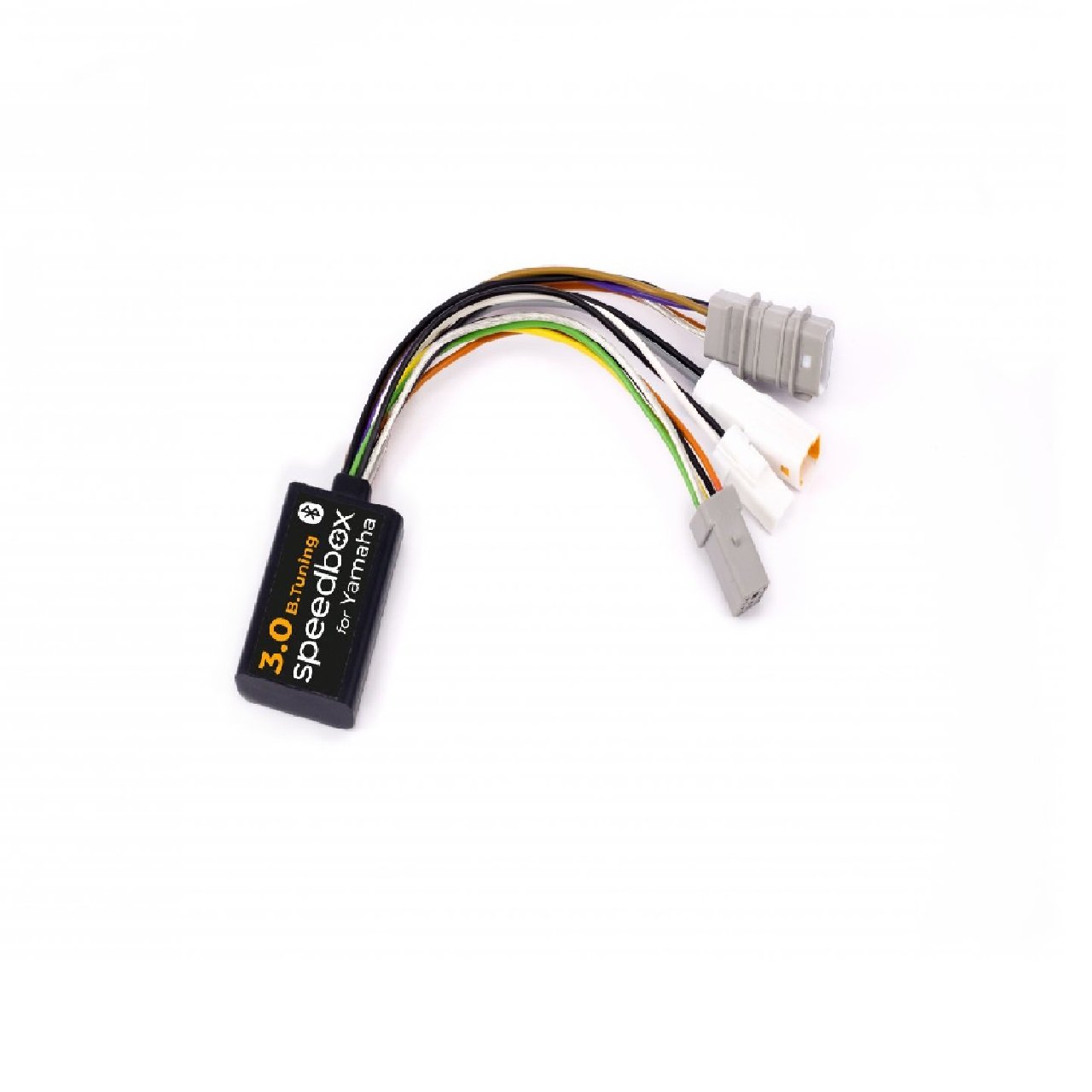

SpeedBox 3.0 B.Tuning for Yamaha (PW-X, SE, TE, CE, X2)

New generation tuning chip with Bluetooth and mobile app for your e-bike.
This new product brings a unique connection of e-bike and mobile phone. The SpeedBox 3.0 B.Tuning chip is a top-notch product perfectly optimized for the most powerful ride and experience. It suppresses the speed limiter so you can enjoy your ride at unlimited speed. Thanks to SpeedBox App mobile application you can monitor and store all the parameters of your trip on the display of your phone in any place, anytime.
PROPERTIES:
Activation: SpeedBox App/ LIGHT button / ↑↓↑↓
Maximum speed: unlimited
Speed limit setting: yes
Display shows: actual values
Compatible with: SpeedBox App
Compatible with motors:
PW-X
PW-SE
PW-TE
PW-CE
PW-X2
PW-ST until 2021 incl.
Not compatible with e-bikes and motors:
Yamaha UrbanRush
CrossCore
CrossConnect
Wabash
PW-X3
YDX-Torc
YDX-Moro
YDX-Moro Pro
PW-ST since 2022
How does SpeedBox 3.0 B.Tuning work?
The tuning kit can be activated directly from the mobile application or on your e-bike’s display. After pressing the LIGHT button or ↑↓↑↓, a value of 99 km/h (62 mph) is displayed and from now on you will be able to ride at an unlimited speed.
To deactivate the tuning kit, press the LIGHT button or ↑↓↑↓ again. The value of 25 km/h (16 mph) will appear on your display and the speed limit will reset to 25 km/h. Your e-bike will then work the same as before installation of the chip.
SpeedBox was also designed for e-bikes that do not have a classic control unit. In this case you can just use the combination of + - + - buttons and SpeedBox will be activated. You can easily deactivate SpeedBox in the same way.
You can set the maximum speed of an electric assistance by changing modes by switching modes three levels down and then three levels up. An actual speed limit will be displayed after that. The maximum speed of an electric assistance can be switched by pressing LIGHT button shortly or by turning the rear wheel 360°. The last displayed limit will be saved after 5 seconds of inactivity.
SpeedBox App for SpeedBox 3.0 B.Tuning

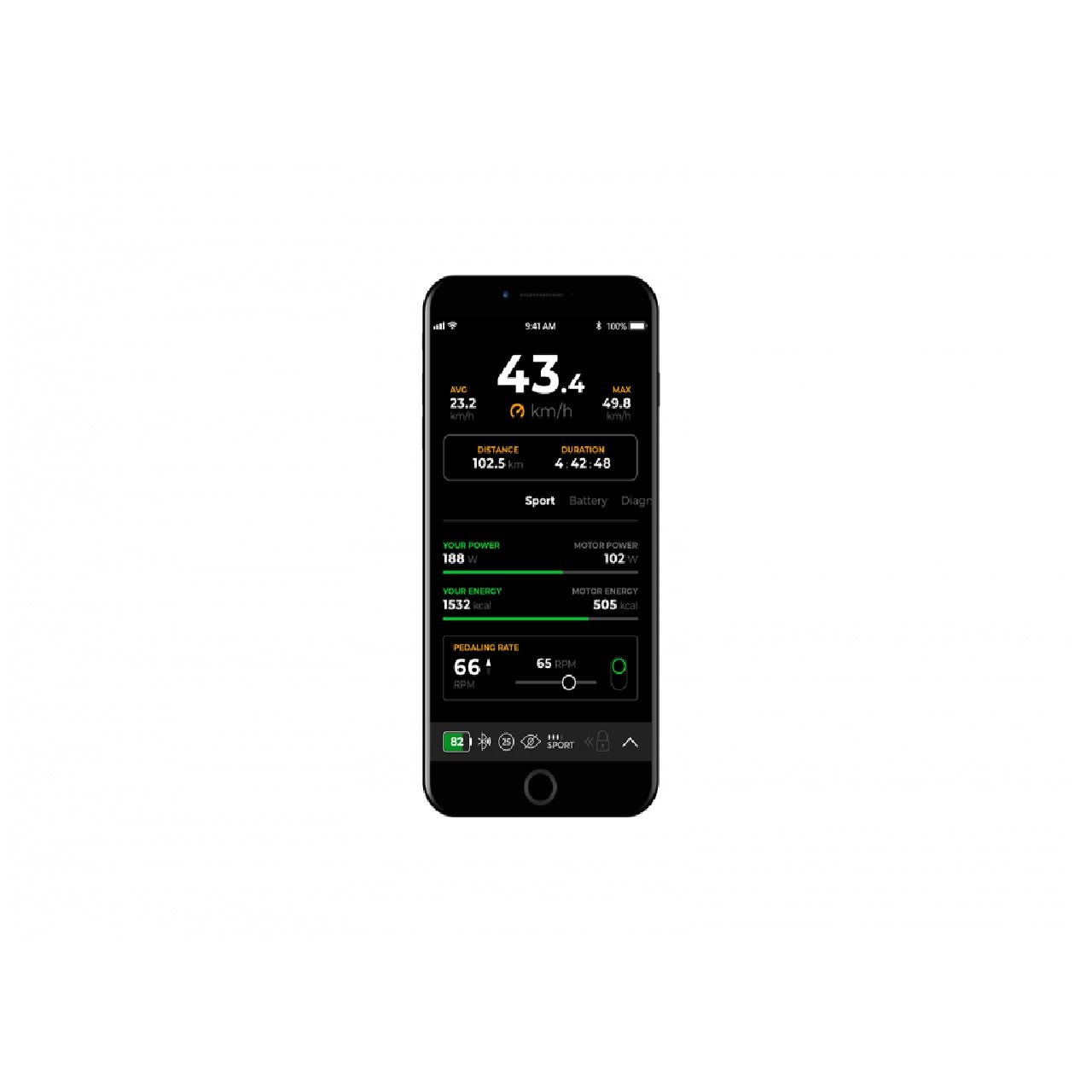

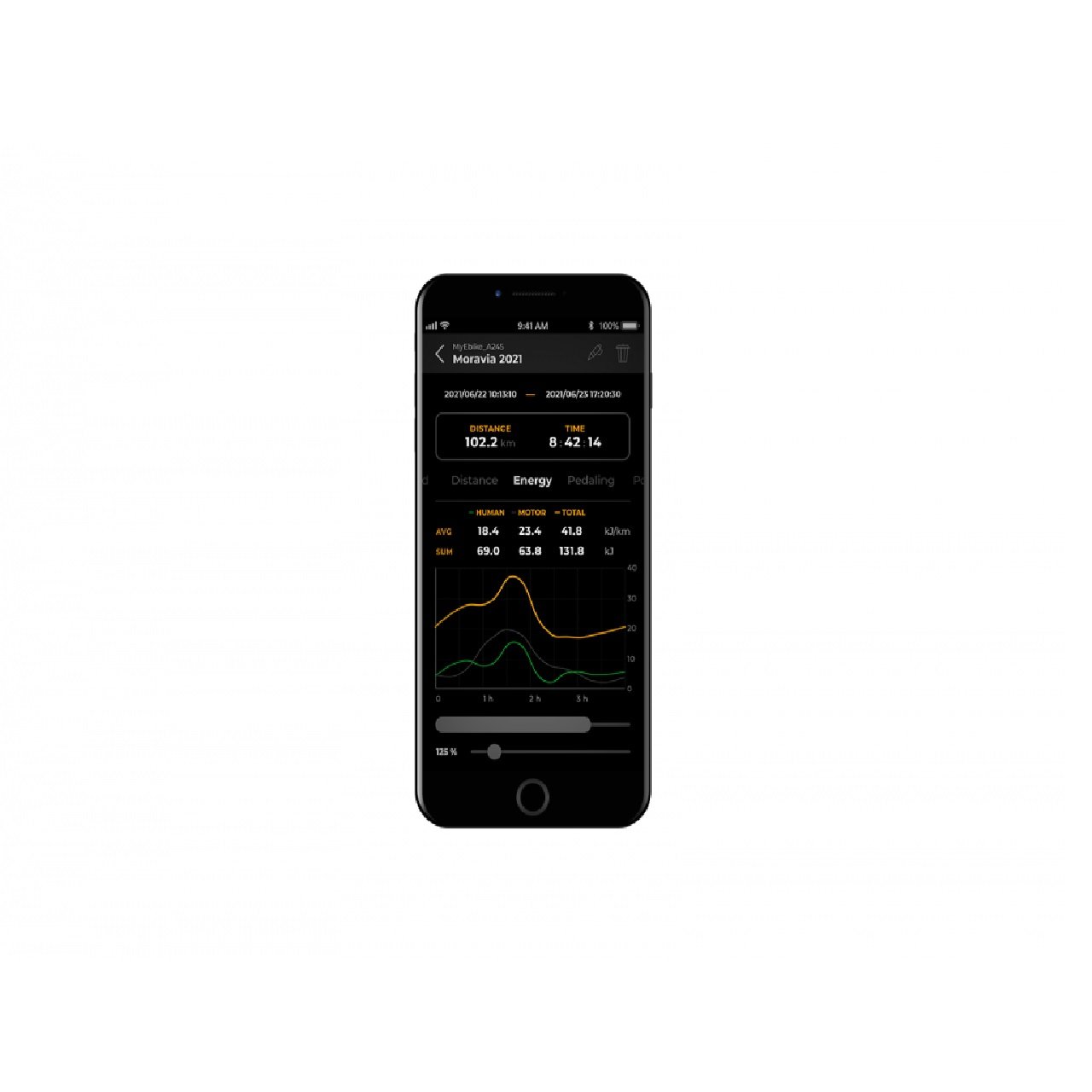

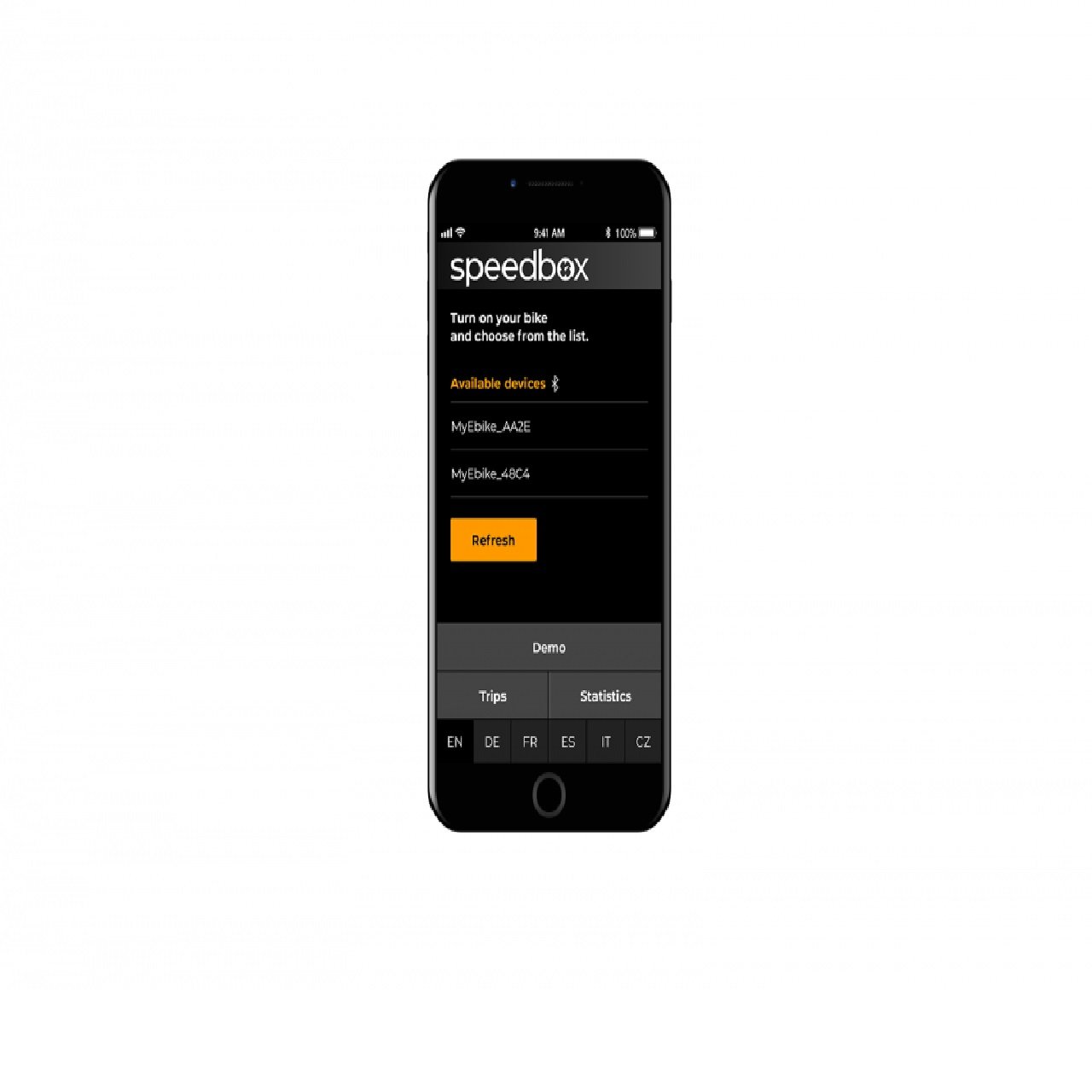

SpeedBox App is an application specially designed for SpeedBox 3.0 B.Tuning, which uses Bluetooth technology to connect your e-bike to your mobile application. After downloading the application and connecting your mobile phone to your e-bike you will see current data and trip parameters displayed on your phone. Individual trips can be stored so that the results can be compared with friends and together they can monitor their performance. So just enjoy the ride and leave checking the parameters for later!
SpeedBox App features:
• Tuning control
• Speed limit settings
• Saving and viewing your trips
• Invisible tuning
• Motor lock
• Motor diagnostics
SpeedBox 3.0 B.Tuning is not limited to working with SpeedBox App. However, it is a great tool that will provide you with a complete overview of your performances.
Download SpeedBox App to your phone just before ordering the SpeedBox 3.0 B.Tuning chip. You can try out our demo version and get to know all the awesome features and, at the same time, make sure that the application is fully functional on your phone. To connect to the SpeedBox B.Tuning chip, your phone needs to be equipped with Bluetooth 4.0 or higher.
Assembly

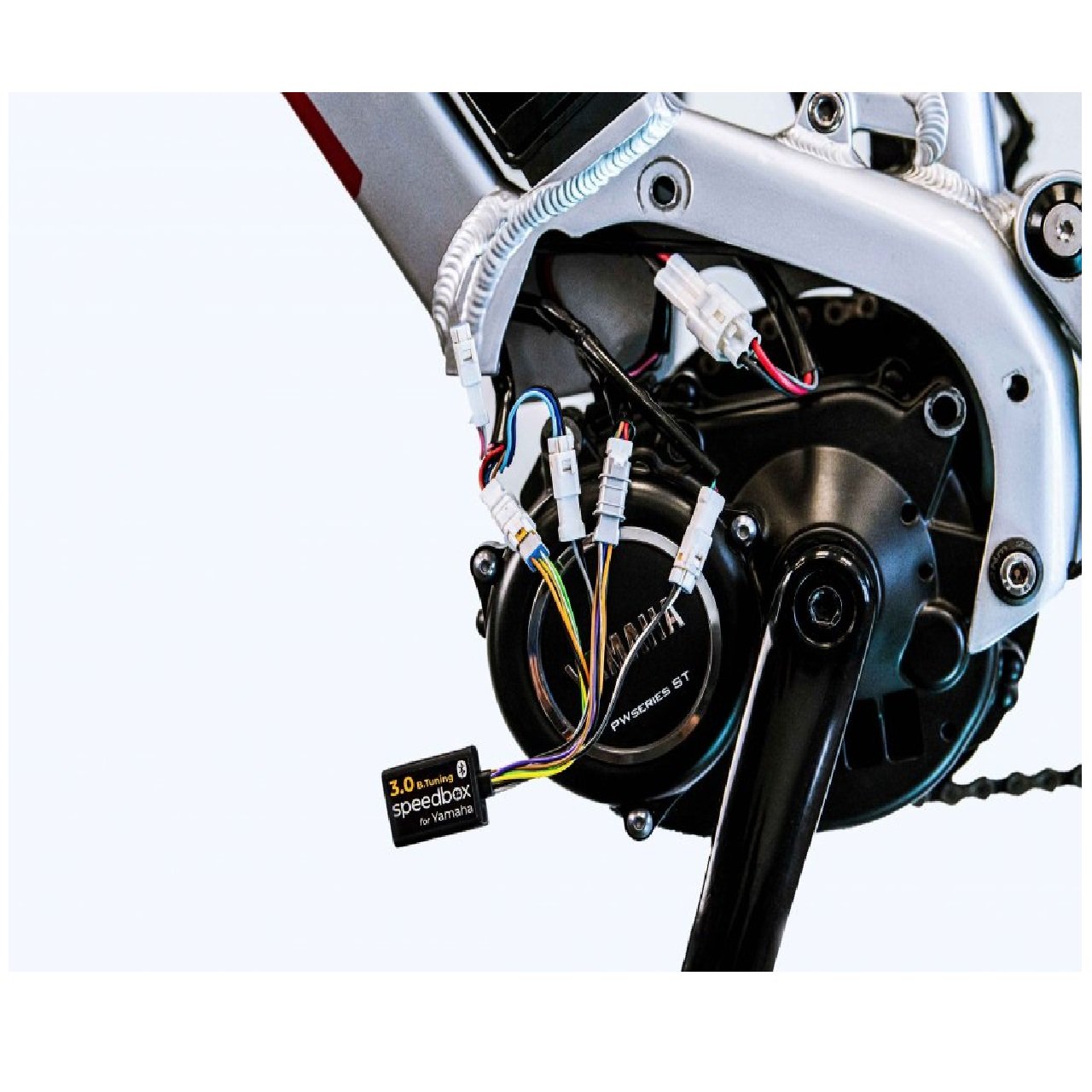

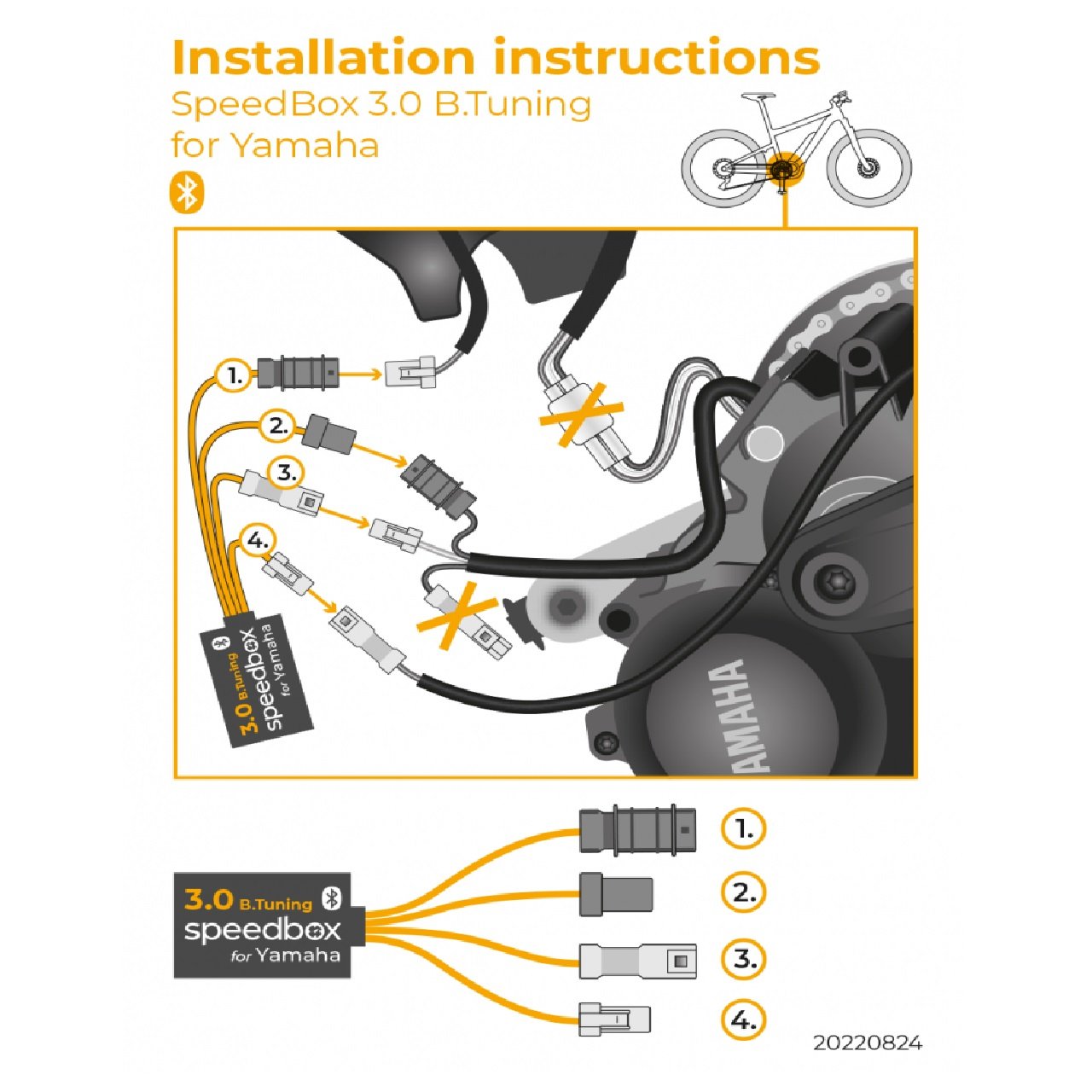

When connecting the SpeedBox chip to an e-bike you will find connectors colored to make installation very simple. We have prepared detailed instructions and videos to make installation easy for you. Disassembly of our tuning chip is just as easy. If you have any troubles with installation or disassembly, do not hesitate to contact us.
If you are planning to install SpeedBox on a brand-new bike, make sure you ride it for at least 10 km before the chip is activated.
Warning
Please note that the operation of this type of modified electric bikes on public roads may be against the law in some countries. The manufacturer takes no responsibility for damages resulting from the use SpeedBox products. Electric...
