SpeedBox 1.2 fits Bosch (Smart System + Rim Magnet)

The tuning for e-bikes with the newest Bosch Gen4 motor and Smart System + Rim Magnet. Get the most of your e-bike!
SpeedBox 1.2 fits Bosch enables you to suppress the speed limiter on your e-bike.
If you want to see correct speed and all riding data during your ride, we recommend choosing SpeedBox 1.2 B.Tuning fits Bosch - you can see the real values in our SpeedBox App – right on the display of your phone.
• Maximum speed: Unlimited (max 35 km/h recommended)
Display shows:
Real speed: NO
Correct travelled distance: After the countdown process is
finished)
• Activation/deactivation (do not perform while riding):
WALK function / - + - +
• Indication of tuning activation/deactivation: YES (3.5/2.5 km/h)
Compatible with:
All the Smart System displays
All the Smart System motors
• Not compatible with:
Standard magnet
ABS system
SpeedBox App

we would like to inform you, that the new update of Bosch motors with the Smart System (Software version 11.13.0) can cause incompatibility with the following SpeedBox products:
 - SpeedBox 1.0 (B.Tuning) for Bosch
 - SpeedBox 1.1 (B.Tuning) for Bosch
 - SpeedBox 1.2 (B.Tuning) for Bosch
We highly recommend avoiding downloading this update.
Please consider, that the warranty of the SpeedBox products does not apply on dysfunctions of the products, that were caused by updating the motor.

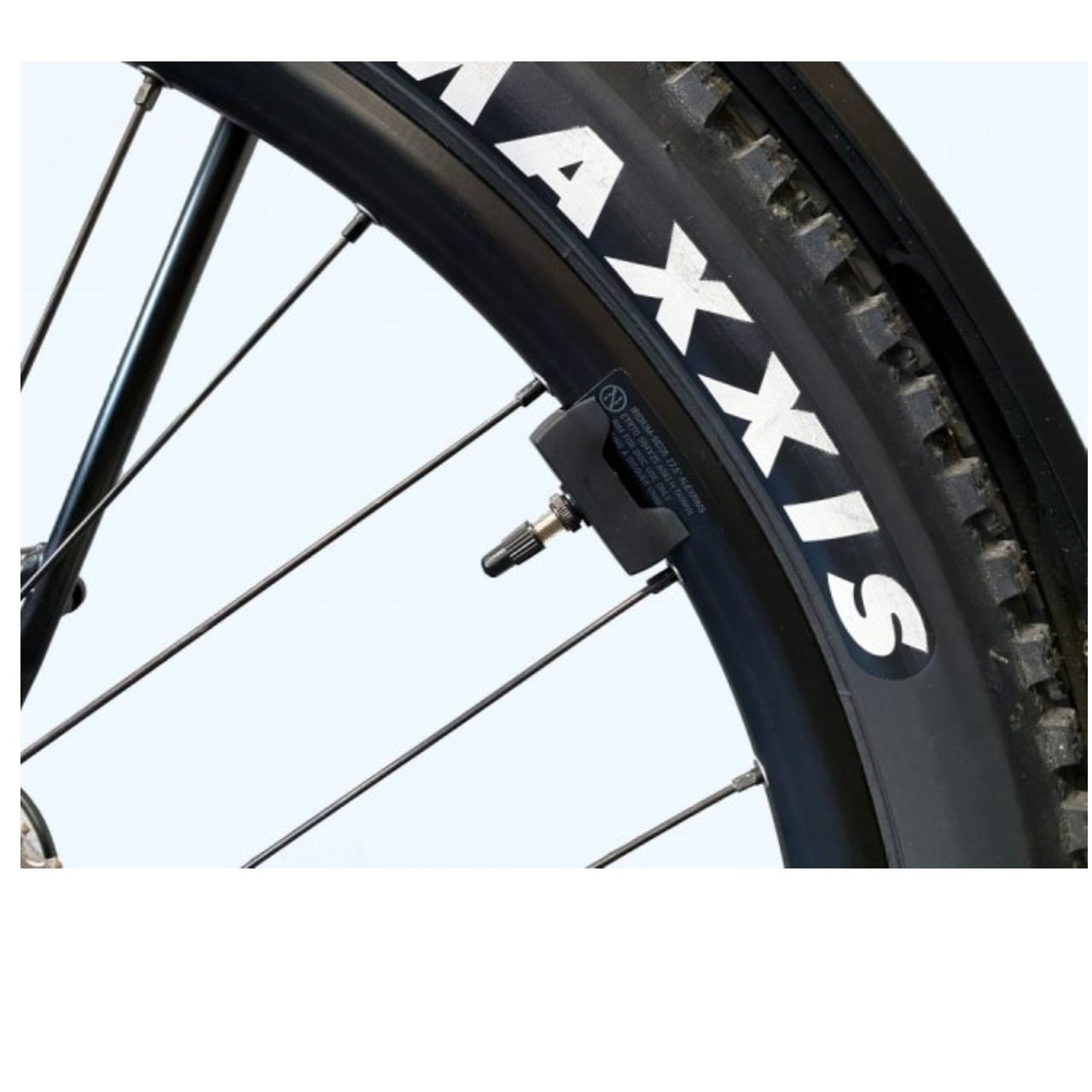

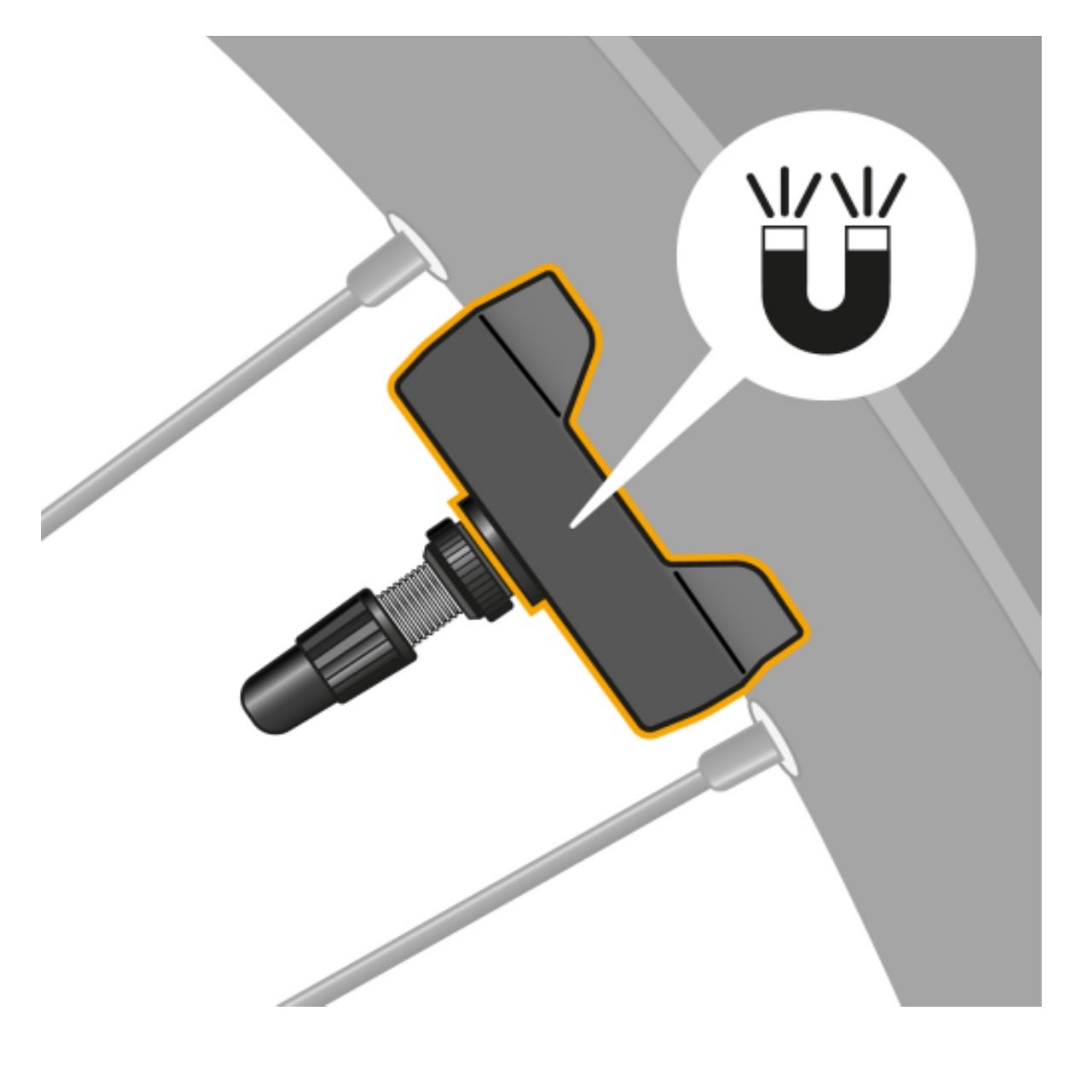

• Compatible with e-bikes that have a magnet attached to a valve (Bosch Rim Magnet)
How does SpeedBox 1.2 for Bosch work?
To activate all the functions of the SpeedBox correctly, it is necessary to enter the menu after the first switching on of the e-bike after the tuning installation and switch to the circumference of the wheel of your e-bike.
Activate/deactivate the tuning before the ride (when the e-bike is standing still), not during riding!
You will activate the SpeedBox 1.2 tuning directly on your e-bike’s control unit by activating the WALK assist function shortly (holding down the “-” button). Your e-bike display will show a value of 3.5 km/h (2.2 mph) and from now on you will be able to ride up to 35 km/h. You may change the default speed limit to any limit you want (up to 99 kph), however, to minimize the risk of error codes, we recommend not to exceed 35 km/h.
To deactivate the tuning, activate the WALK assist function shortly again (by holding down the “-” button). Your e-bike display will show a value of 2.5 km/h (1.6 mph) and the speed limit will be reset to 25 km/h. Your e-bike will then work the same as before the tuning installation.
SpeedBox was also designed for e-bikes that do not have the WALK assist function enabled, or activated. In this case, you can activate/deactivate tuning by switching between two assistance modes twice, i.e. by pressing the - + - + buttons.
You can set the maximum speed limit by switching the modes from TURBO mode three levels down and then three levels up: eMTB - TOUR+ - ECO - TOUR+ - eMTB - TURBO. An actual speed limit will be displayed after that. The maximum speed of an electric assistance can be switched by activating WALK assist function shortly or by turning the rear wheel 360°. The value of 2.5 km/h on the display corresponds with the limit of 25 km/h, 3.0 corresponds with 30 km/h, 3.5 corresponds with 35 km/h etc. The last displayed limit will be saved after 15 seconds of inactivity.
After finishing the ride, leave the e-bike on for a while until the SpeedBox finishes the "countdown" process (the ride time will continue on the display until it stops and shows the correct distance traveled) to prevent tuning detection on your e-bike.
