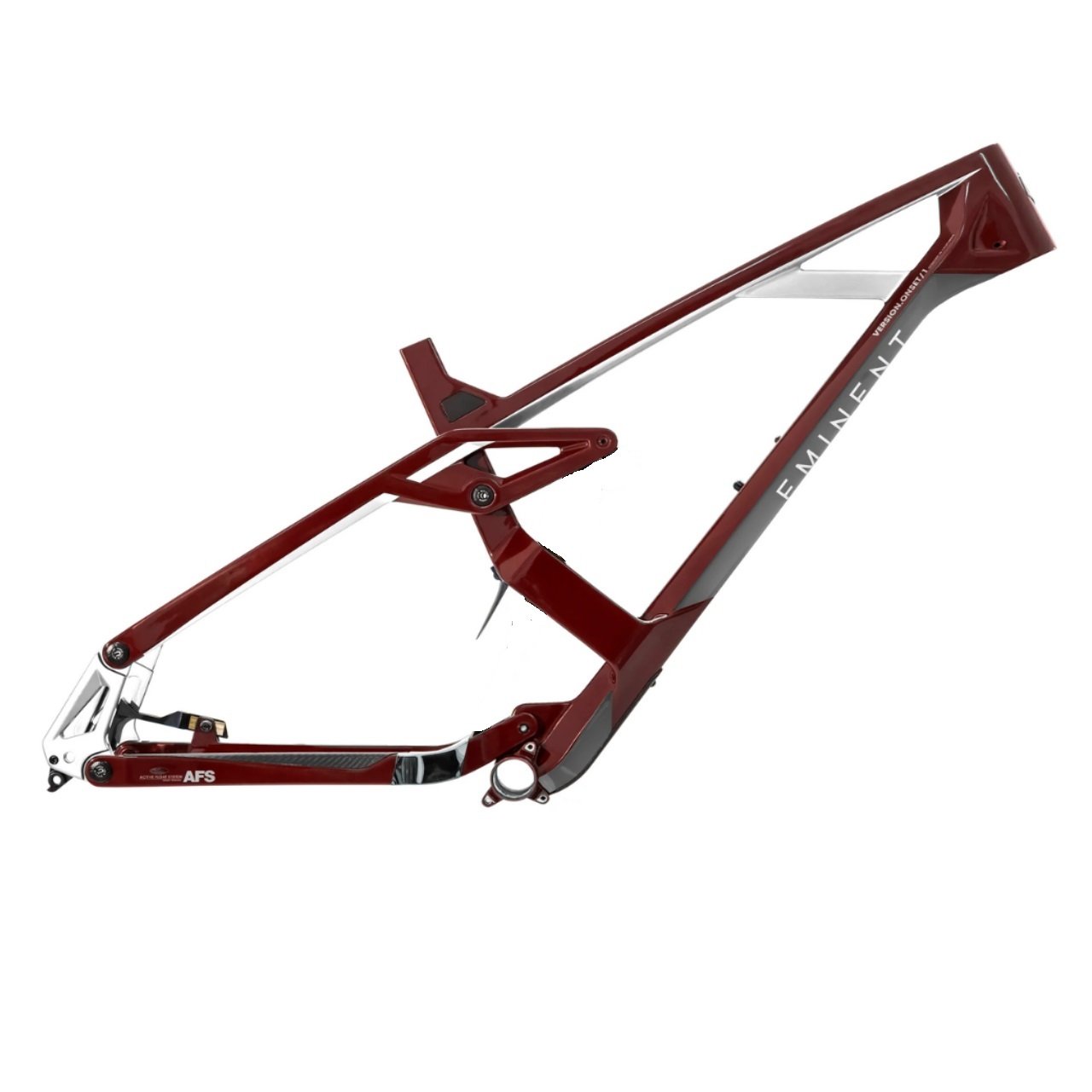

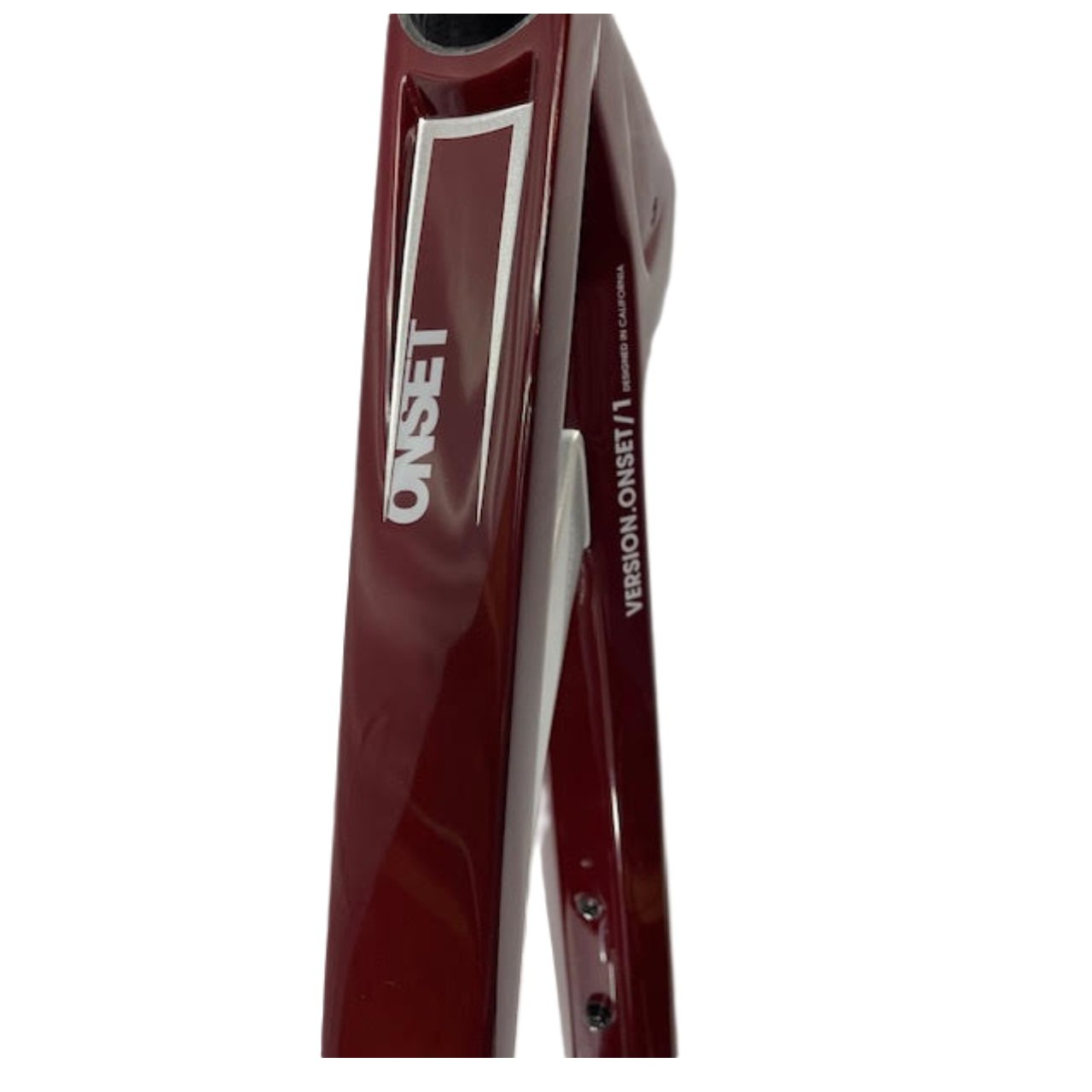

Eminent Cycles Onset ST Carbon 29 Full Suspension Frame Only -Medium
Eminent Cycles Onset ST Carbon 29 Full Suspension Frame Only -Medium
Regular price
$1,699.99 USD
Regular price
Sale price
$1,699.99 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

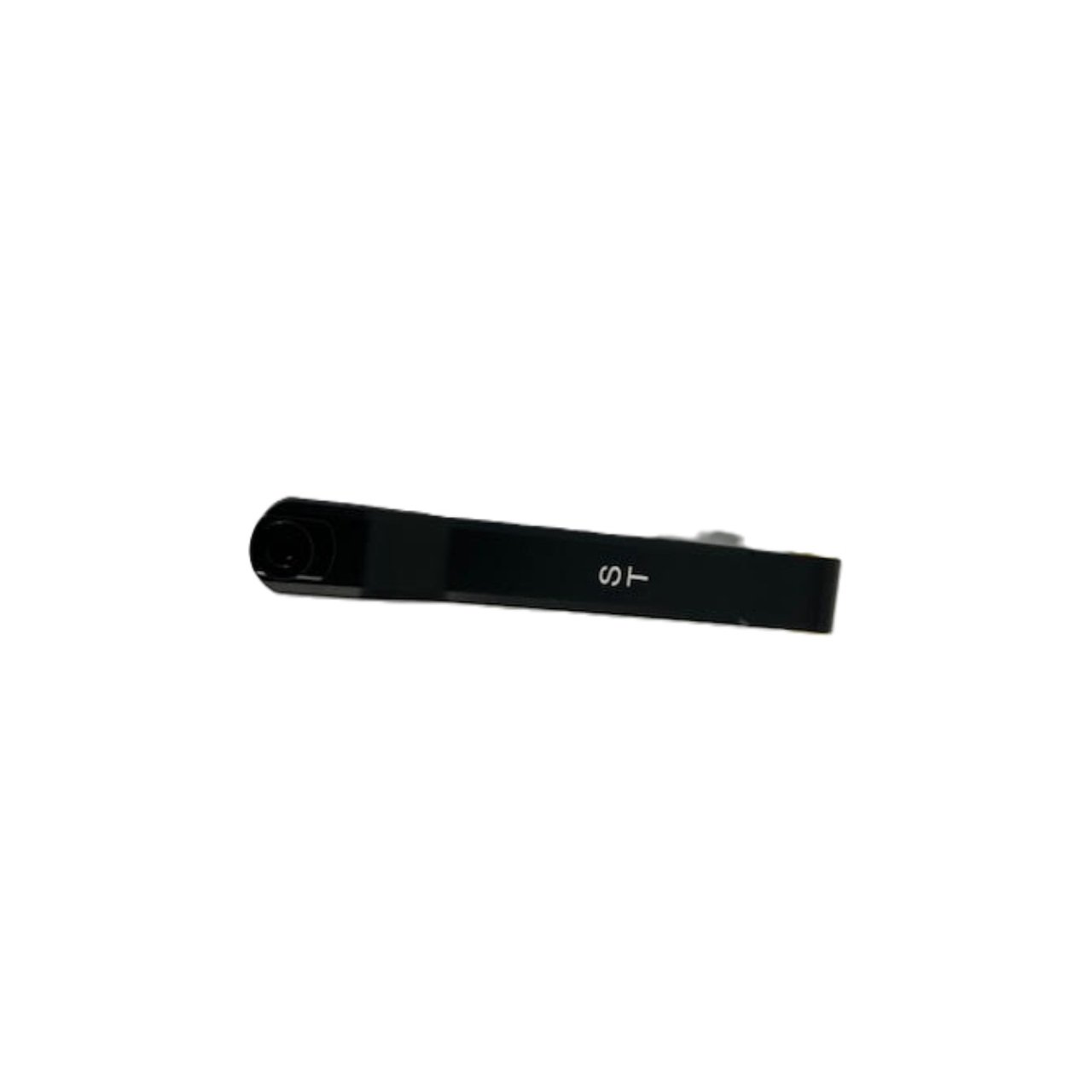

This is for the frame only, no headset, no bottom bracket, and no shocks. Includes: Comes with ST Rear Shock Links for 120mm rear travel, Seat Binder, and Floating Brake Bracket. This frame is new and never assembled, Will come in generic box since the original box was damaged. Sale is final so ask all questions before ordering. Takes 190 x 45 rear shock and should have 130mm travel, 44mm offset front fork

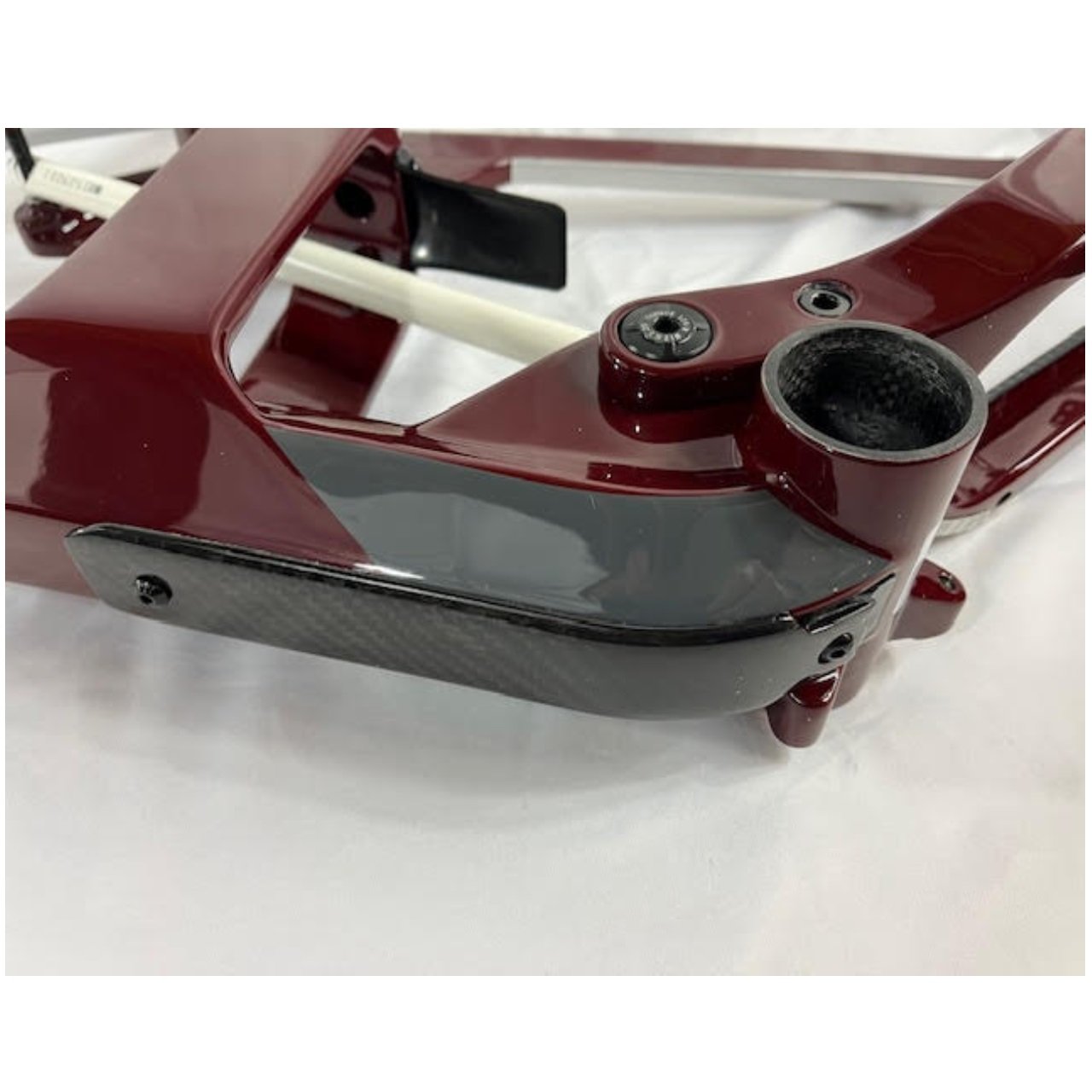

AFS frames provide zero compromise traction in all scenarios: pedaling, descending and brake. Eminent utilizes top shelf unidirectional carbon fiber to ensure the highest strength to weigh ratio. Additionally features include internally guided cable ports, integrated down tube protector, and angular contact bearings throughout to ensure class leading lateral stiffness.
The confidence to push and the high that comes with it. That's what this trail bike is about. Its planted predictability in the nastiest situations inspires confidence and a surge of endorphins. That rush will get you to the bottom and hungry for more. No problem, because it's patented full-suspension AFS and carbon frame also delivers unmatched climbing efficiency. Big days like these... this highly capable all‑mountain or light enduro bike will coax them out of you. Realize your potential.

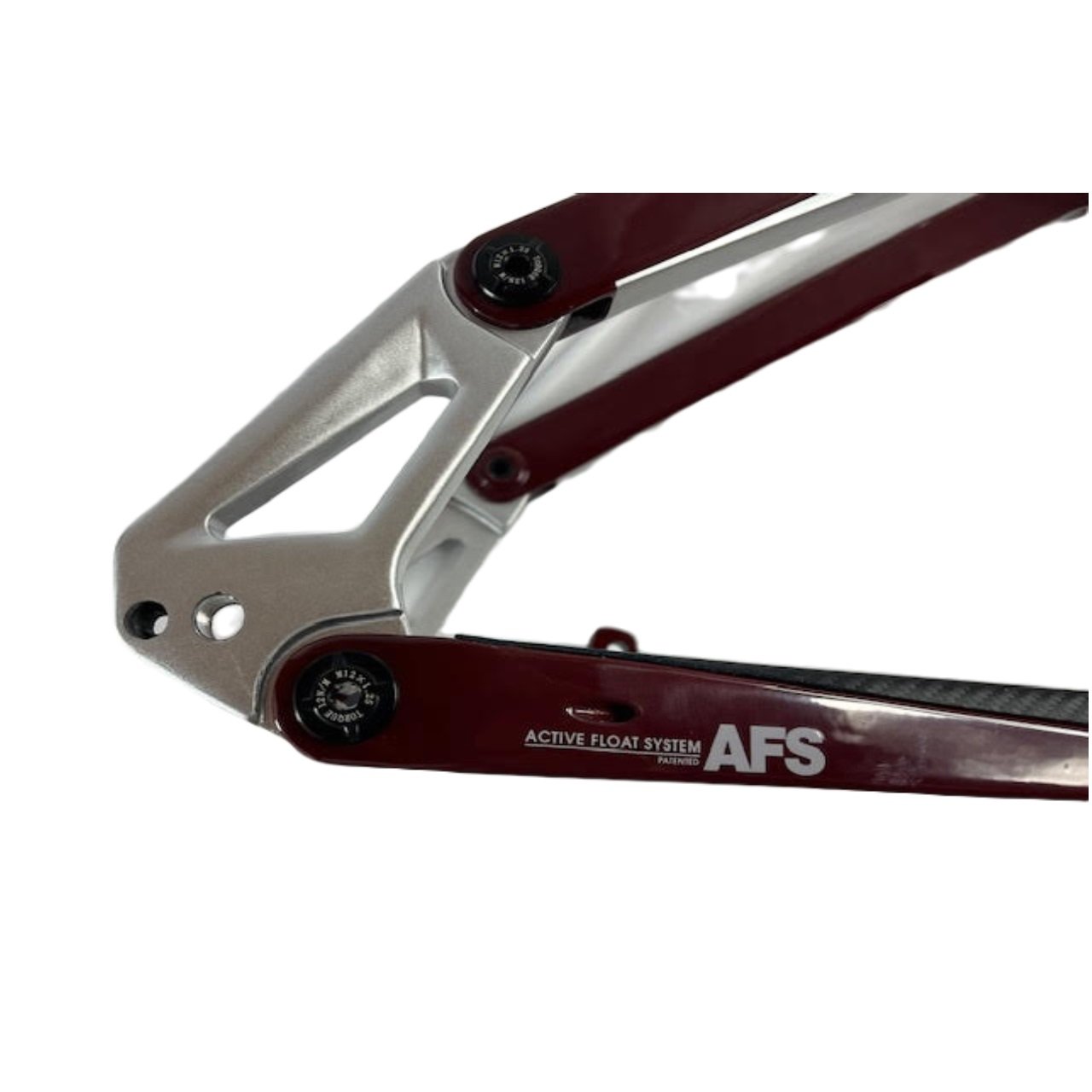

AFS SUSPENSION
Our AFS suspension design provides 2.5mm of rearward axle path or commonly known as "normal" axle path. This is where the rear wheel starts out moving rearward, followed by forward movement through the completion of travel. This type of axle path provides a more poppy and lively feel on the trail and is the preferred choice for lower travel bikes where being light and nimble are more desirable.
PROGRESSIVE LINKAGE
For our shorter travel bikes, we have designed to a lower progressivity, to ensure more compliance at lower speeds than our enduro bikes. The leverage ratio graph shows a soft small bump compliance followed by a progressive drop to support bottom out resistance. At 120mm of rear travel, this curve is supportive against big bottom outs and allows for supple bump management.
FLOATING BRAKE BRACKET

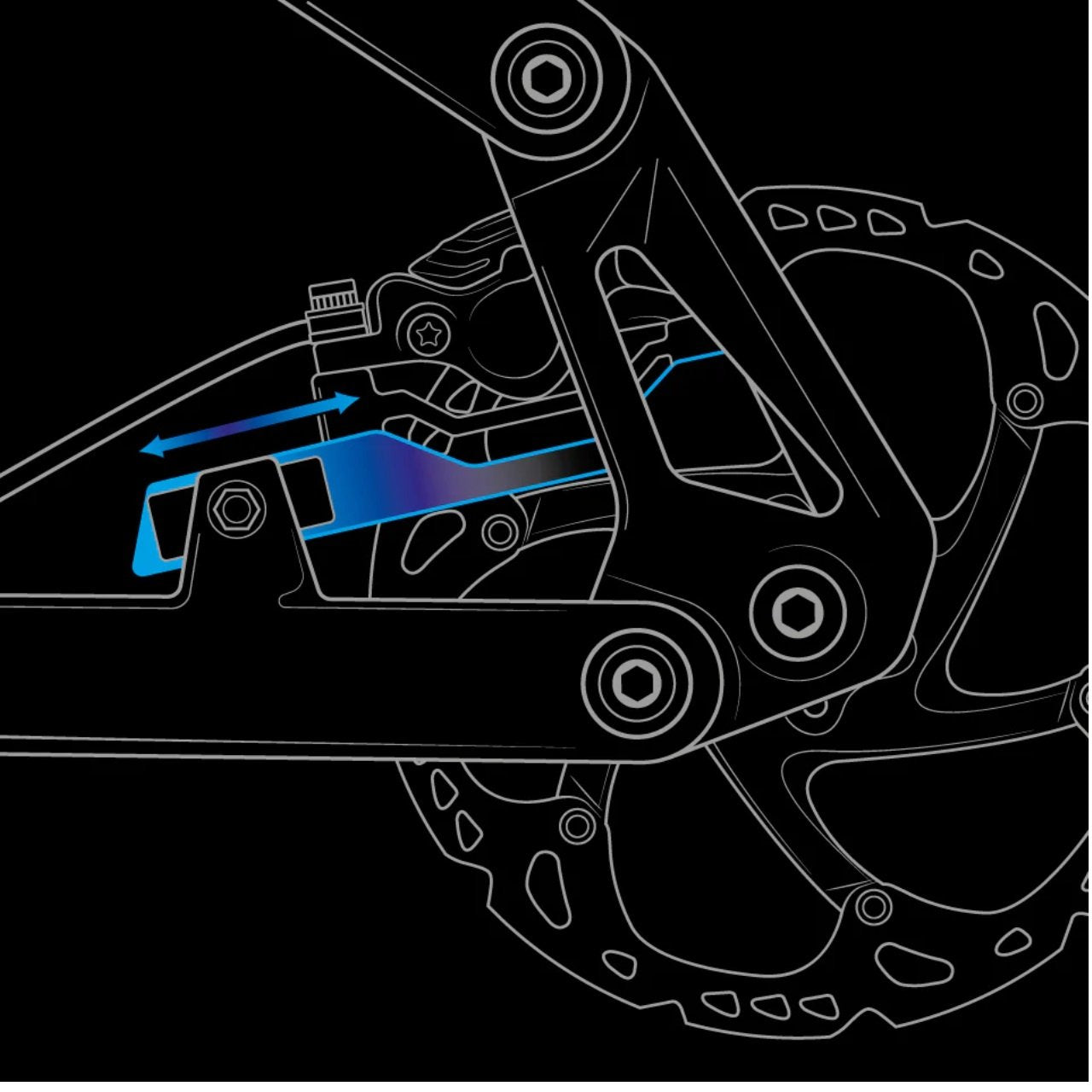

Brake jack (anti-rise). Who out there hasn't had to slow down when grabbing the brakes in rough terrain? With a 55% anti-rise value, the AFS floating brake bracket eliminates any need to slow down in the rough and allows the rider to focus on the trail. As the suspension moves through its travel, the brake bracket maintains the position of the brake to the ground / caliper and ensures that any inertial compressive forces on the suspension are eliminated. It does this by rotating and sliding on bronze bushings, shown below the arrow in the diagram. All of this adds up to phenomenal braking traction while riding. Try it for yourself and feel the difference.

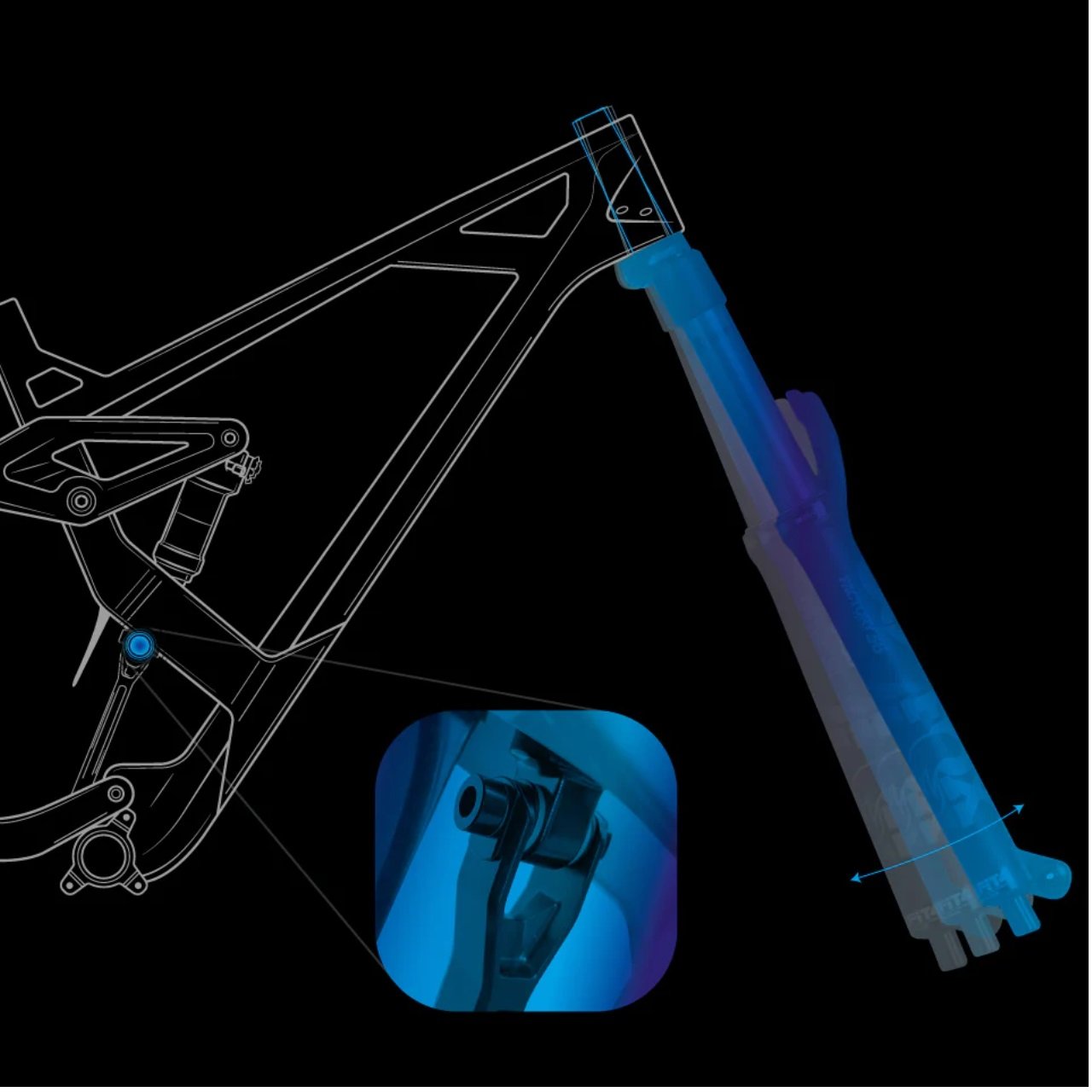

ADJUSTABLE HEAD TUBE ANGLE
If tuning is your thing, the AFS suspension provides a flip chip for a .5° change in the head tube angle. This is done by loosening the shock link bolt shown in the diagram to the left and flipping the chip from the high to the low position. The chip allows for a change from 66.8° to 66.3°.
INTERNAL CABLE ROUTING

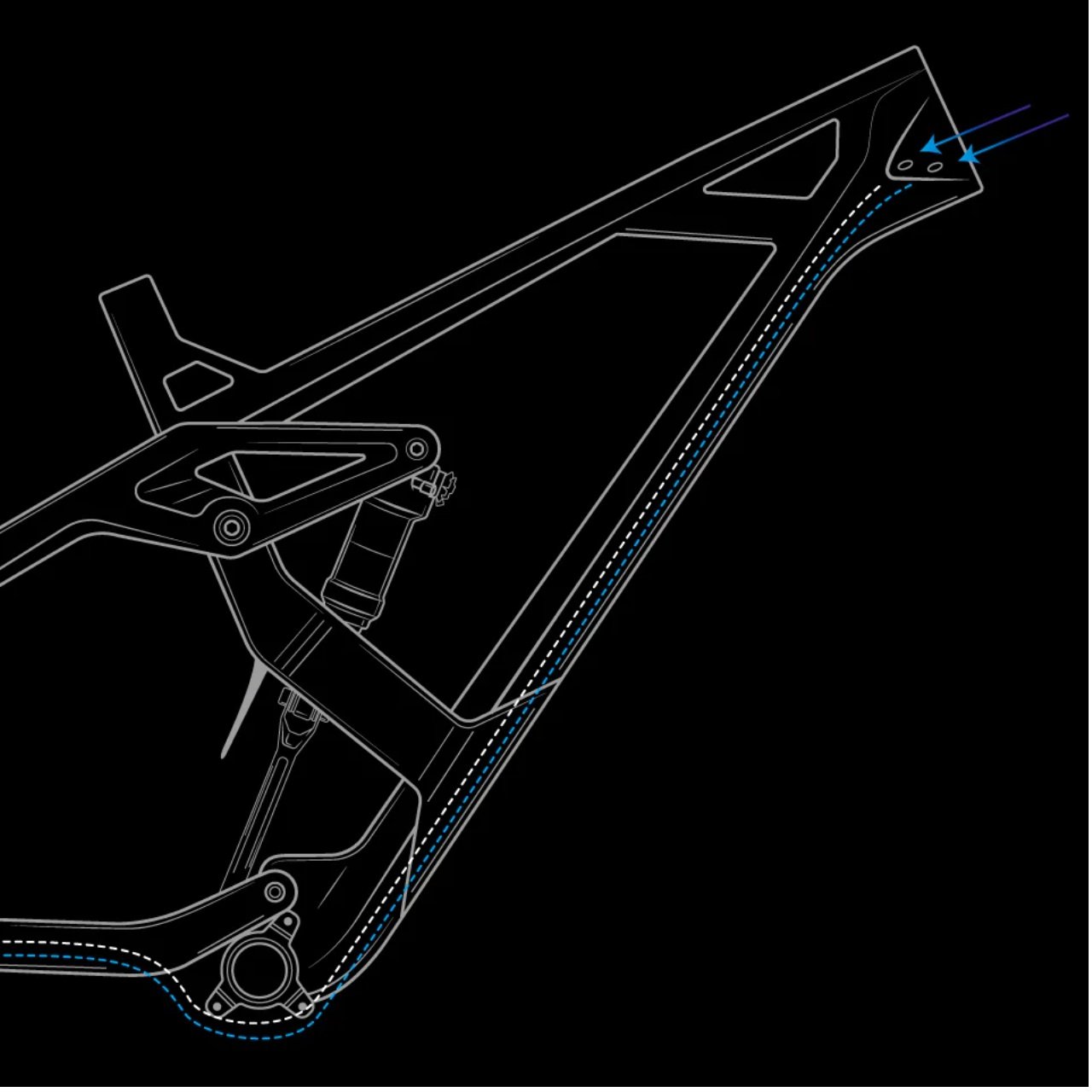

When noise is a concern, have no fear. The cables all have internal routing guides in the frame for noise free operation. To add to the benefit, assembly is greatly improved as fish wires are no longer required when putting your bike together. Just push the cable in at the head tube and it comes out the other end.

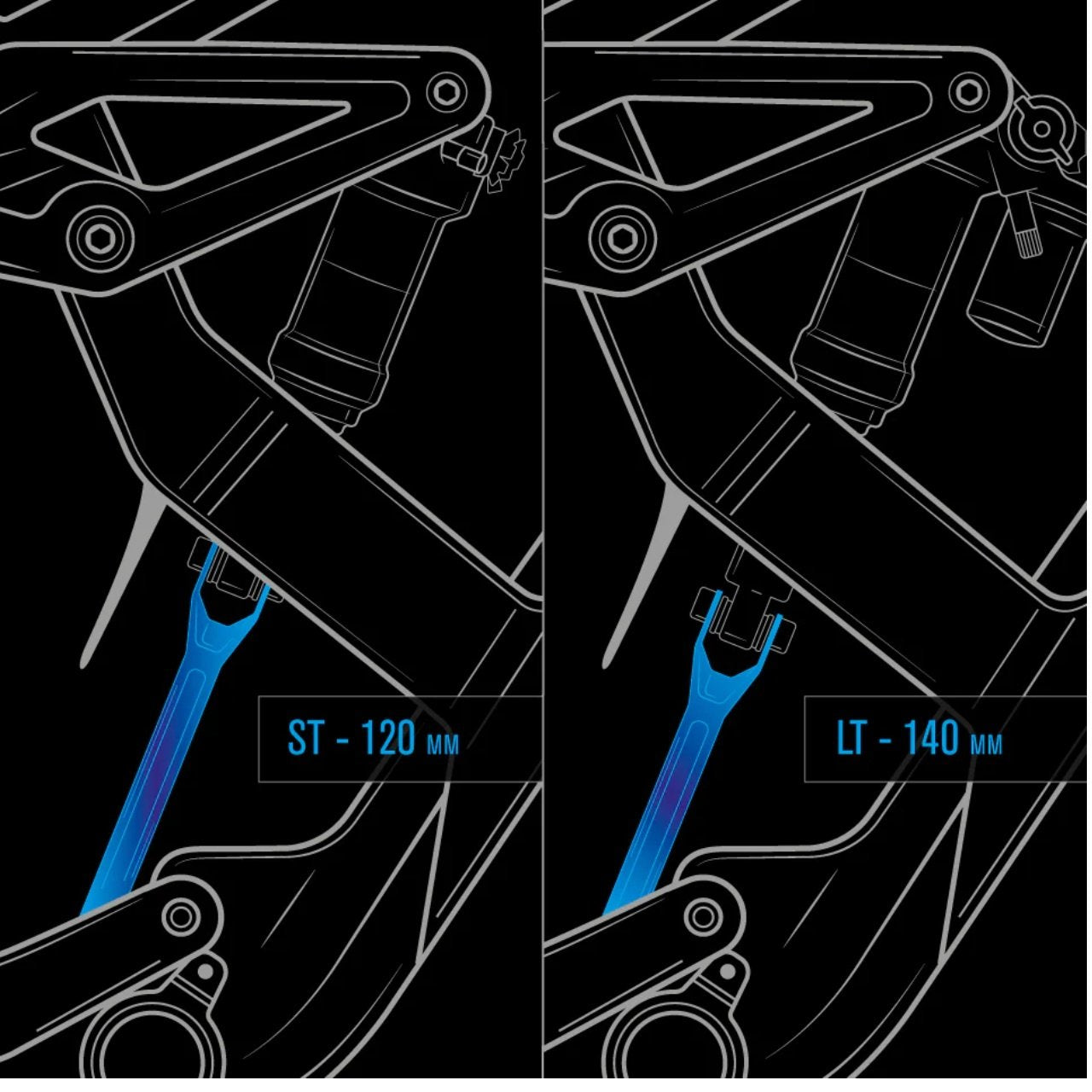

TRAVEL ADJUSTMENT OPTION
Our travel adjustment option really comes in handy especially if you are wanting to up your suspension game but really like your current bike and don't want to spend the money on a new one. We offer an LT link that frees up 20mm of additional suspension travel from the stock setting of 120mm. Just swap the ST link for the LT link, exchange the shock for the longer spec (210x55) and now you have a 140mm of rear suspension travel. More flexibility for your money.
PREMIUM UNIDIRECTIONAL CARBON
Unlike other brands that offer two grades of carbon fiber; standard or premium, we only offer the finest carbon on our frames. Premium Unidirectional carbon fiber is used throughout for ultimate stiffness and durability with no fiberglass fillers. Only the best for Eminent Cycles customers.
Frame Material
Unidirectional Carbon Fiber
BB type
Pressfit 92
Headset Type
ZS 44/ZS 56 removable
Rear Axle Spacing
Boost 148mm
Seat Post Dia
30.9mm
Shock Length
190x45mm
Chain Guide Mounting
ISCG05
