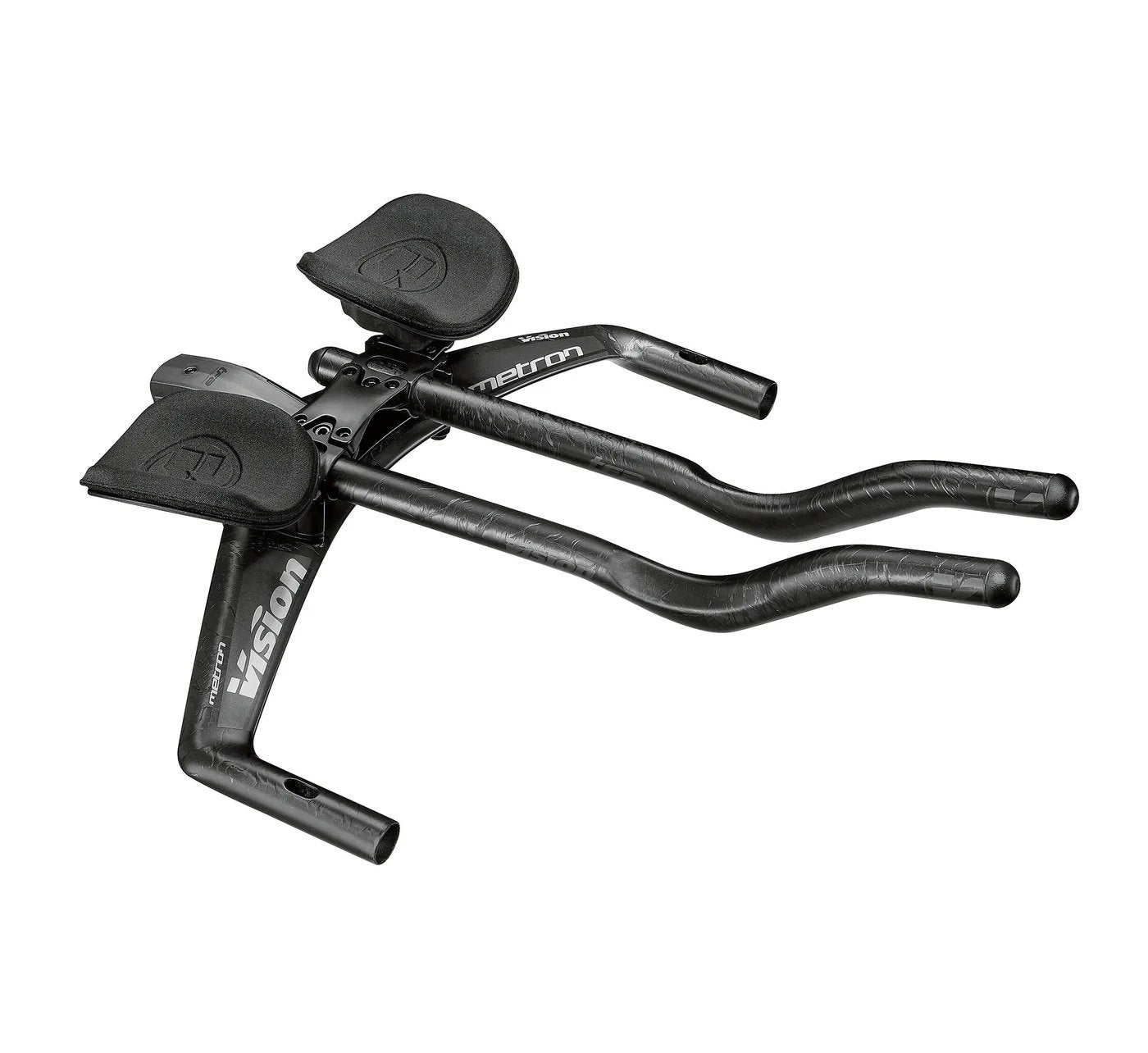

Aerobar Vision Metron TFA w/ Snakebite Technology J/S-Bend-400mm
Aerobar Vision Metron TFA w/ Snakebite Technology J/S-Bend-400mm
Regular price
$955.60 USD
Regular price
Sale price
$955.60 USD
Unit price
/
per
Description
• Metron TFA Aerobar w/ Snakebite Technology• The next generation of integrated aerodynamics, fit and adjustability.
• Patent pending Snakebite stem allows for flip-able base bar with internal cable routing
• Full carbon wing and ergonomic extensions
• Normalized fit increments in every dimension
• Easy adjustability
• Stem allows for internal Di2 junction box positioning and internal cable routing.
FINISH
• UD carbon finish
WEIGHT
• 1,155 grams (with stem)

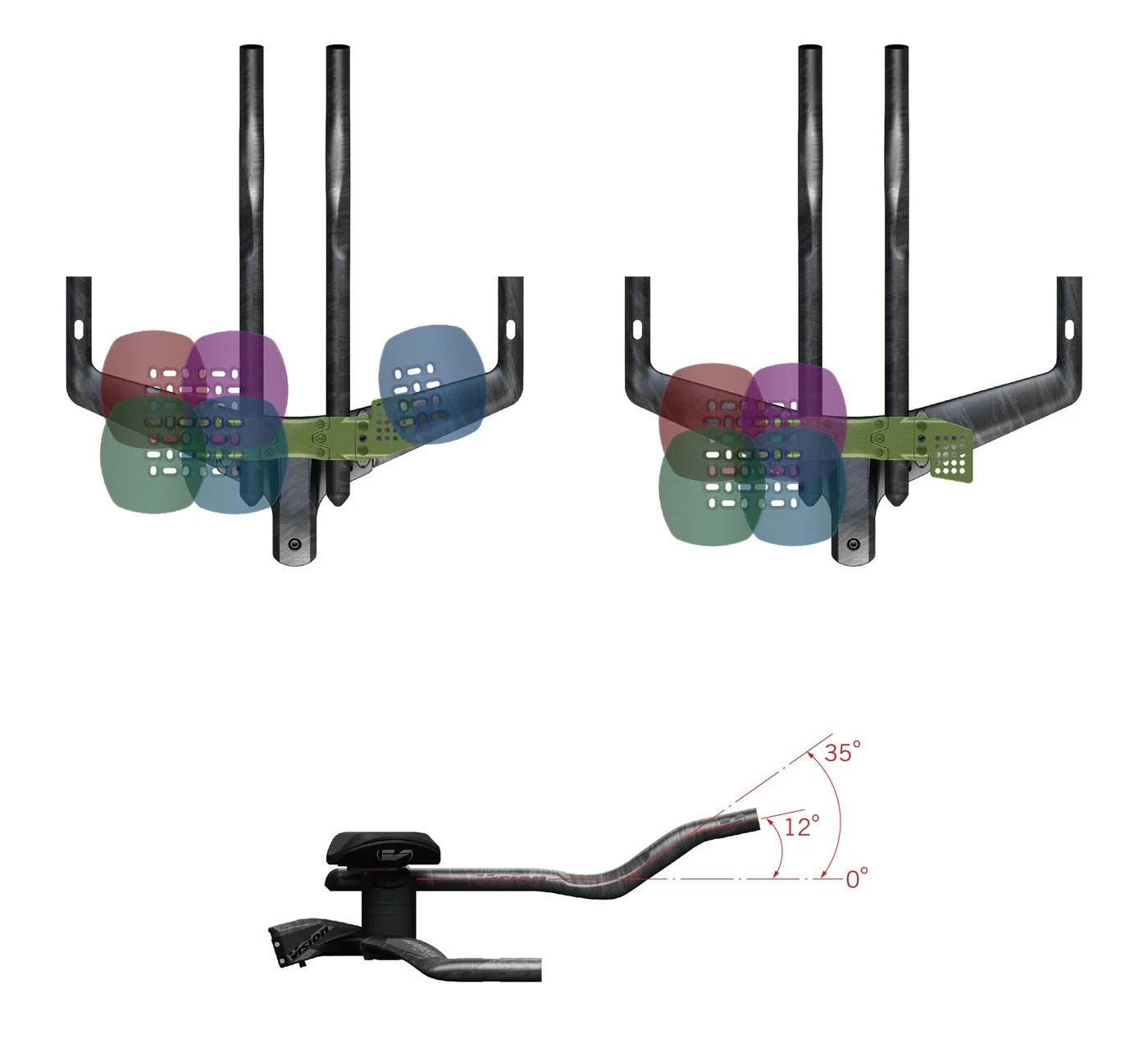

SPEC AND ADJUSTABILITY
• 01 Stack 70mm to 145mm (Bottom of the stem at center to top of uncompressed pad - 5mm increments)
• 02 Reach -9mm to -99mm (Center of base bar to rear edge of armrest - 7.5mm increments)
• 03 Armrest width 210mm to 360mm (outside to outside - 15mm increments)
• 04 Extension length adjustment 245mm to 385mm (Center of base bar to tip)
• 05 Extension length 412mm
• 06 Extension height 60mm (c-c)
• 07 Extension angle 35° (12° at extension tip)
• 08 Extension width 80mm (c-c)
• 09 Base bar width 400mm (c-c)
• 10 Base bar drop/rise -25mm / +25mm (c-c)
• 11 Armrest rotation 0 - 12°
• 12 Bracket tilt adjustment 0 - 12°
