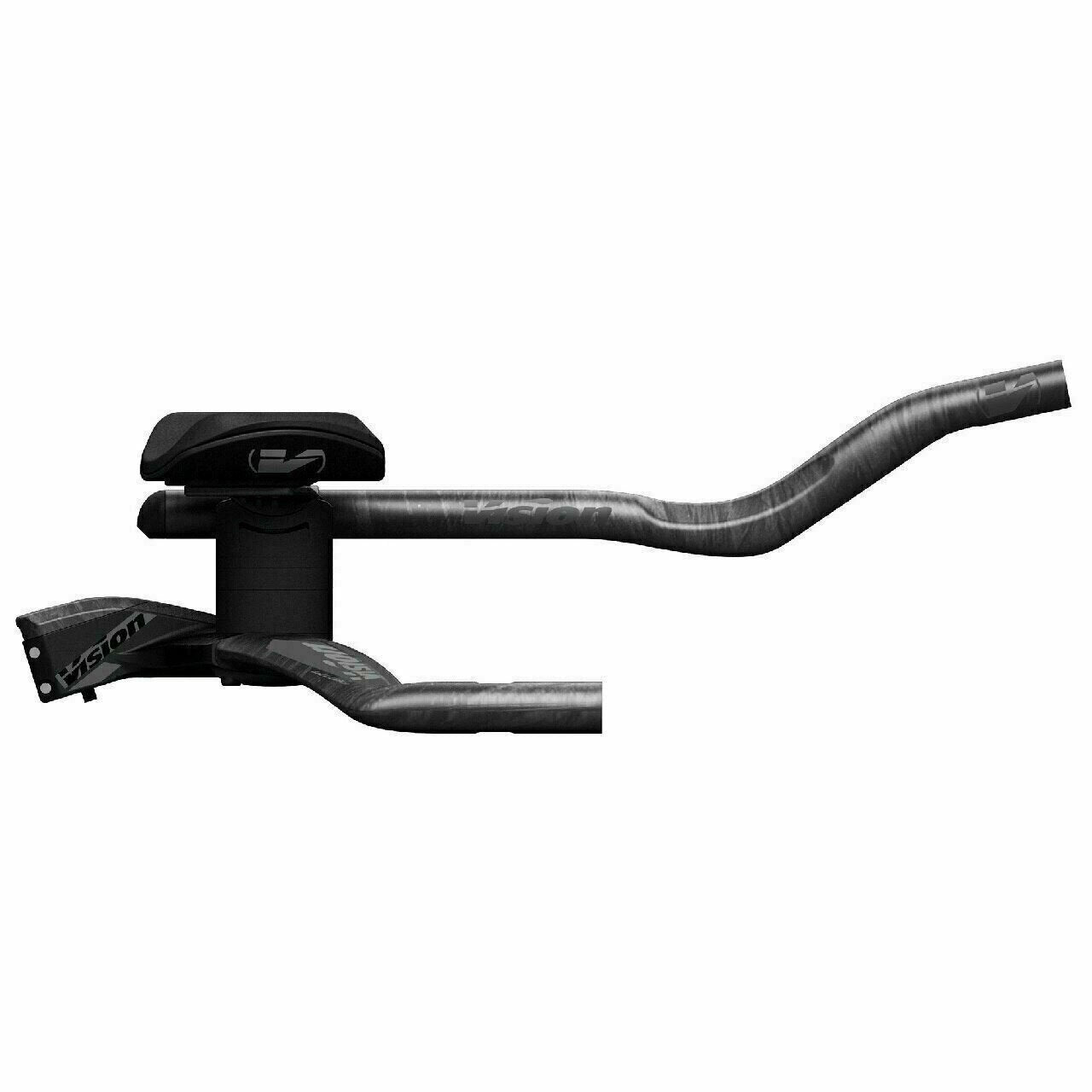

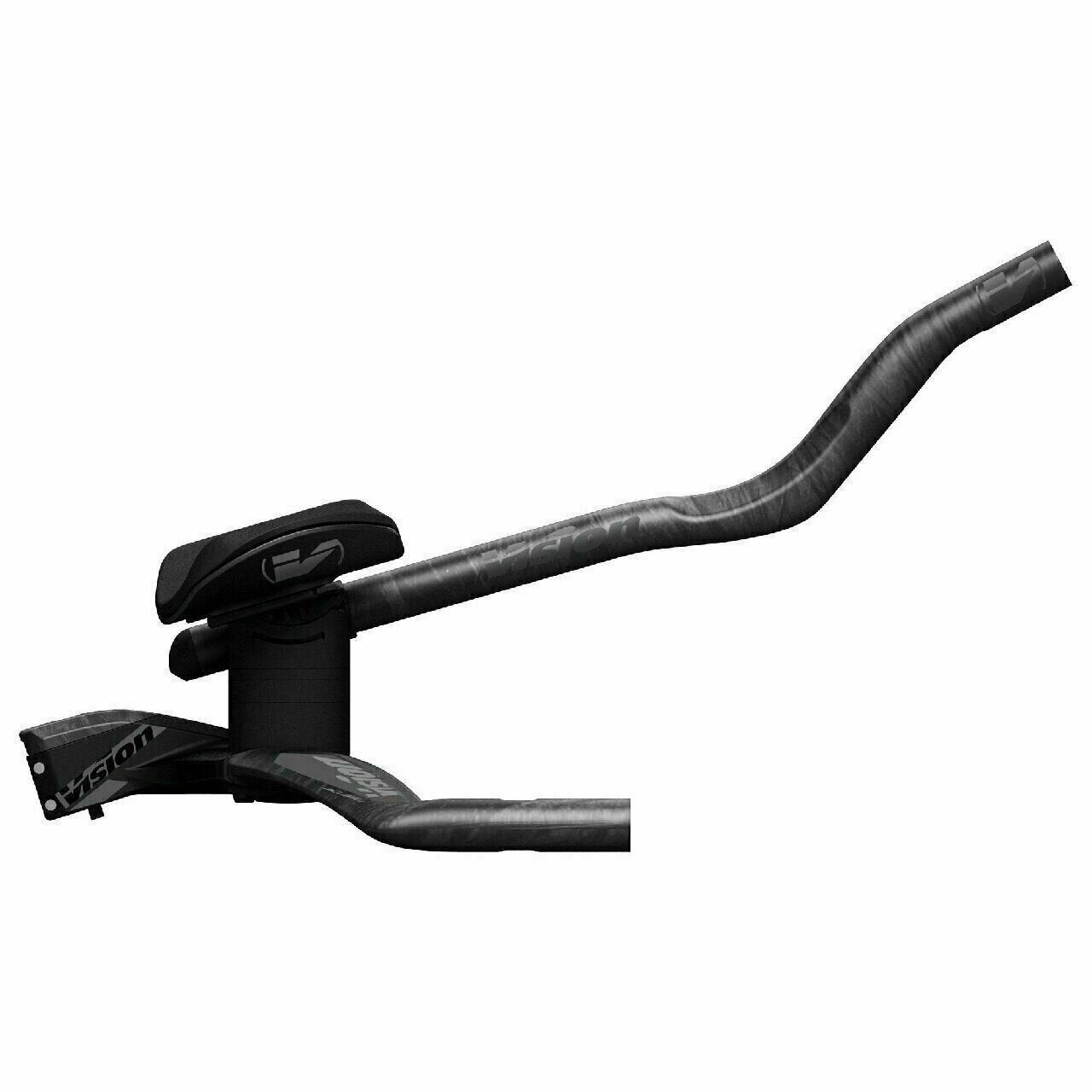

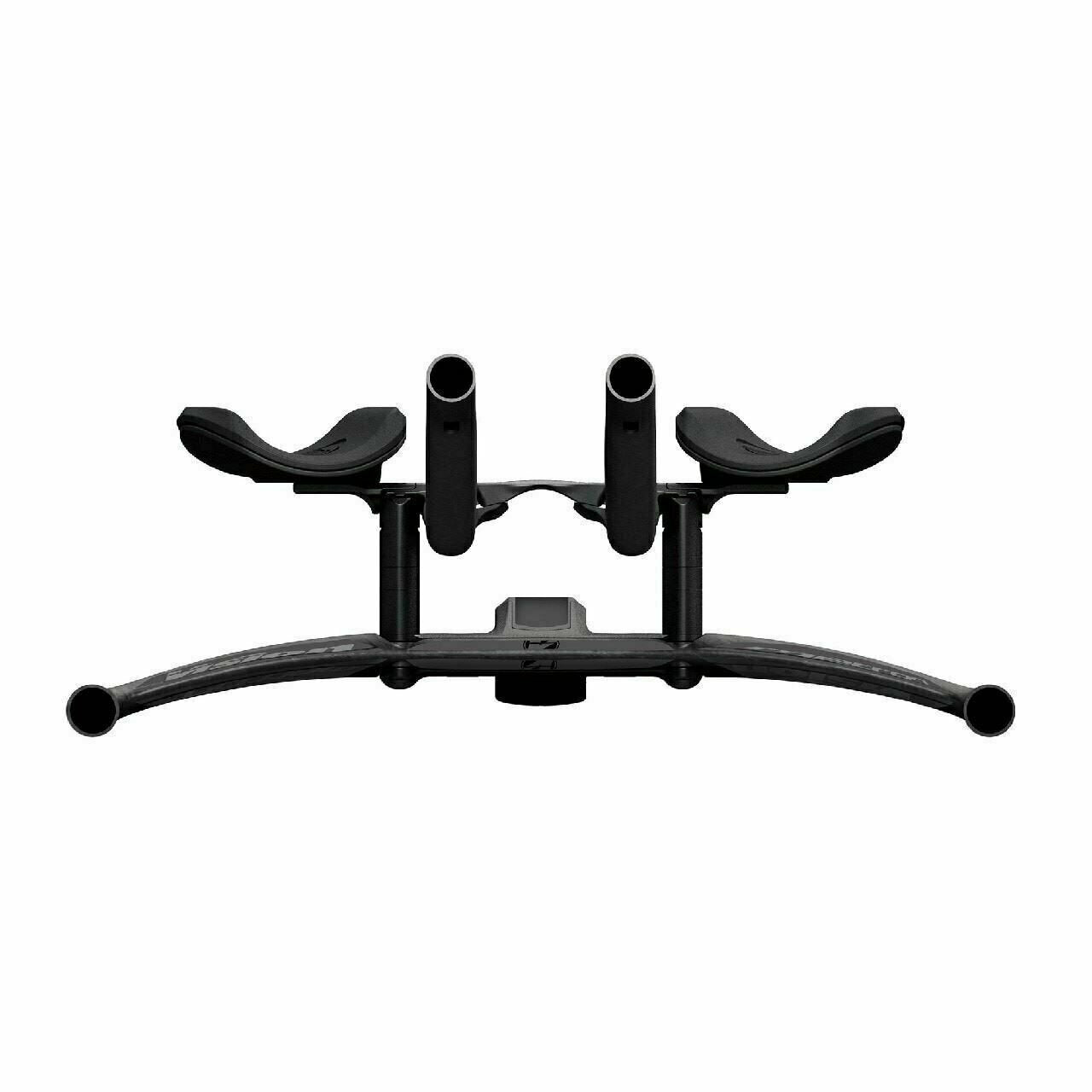

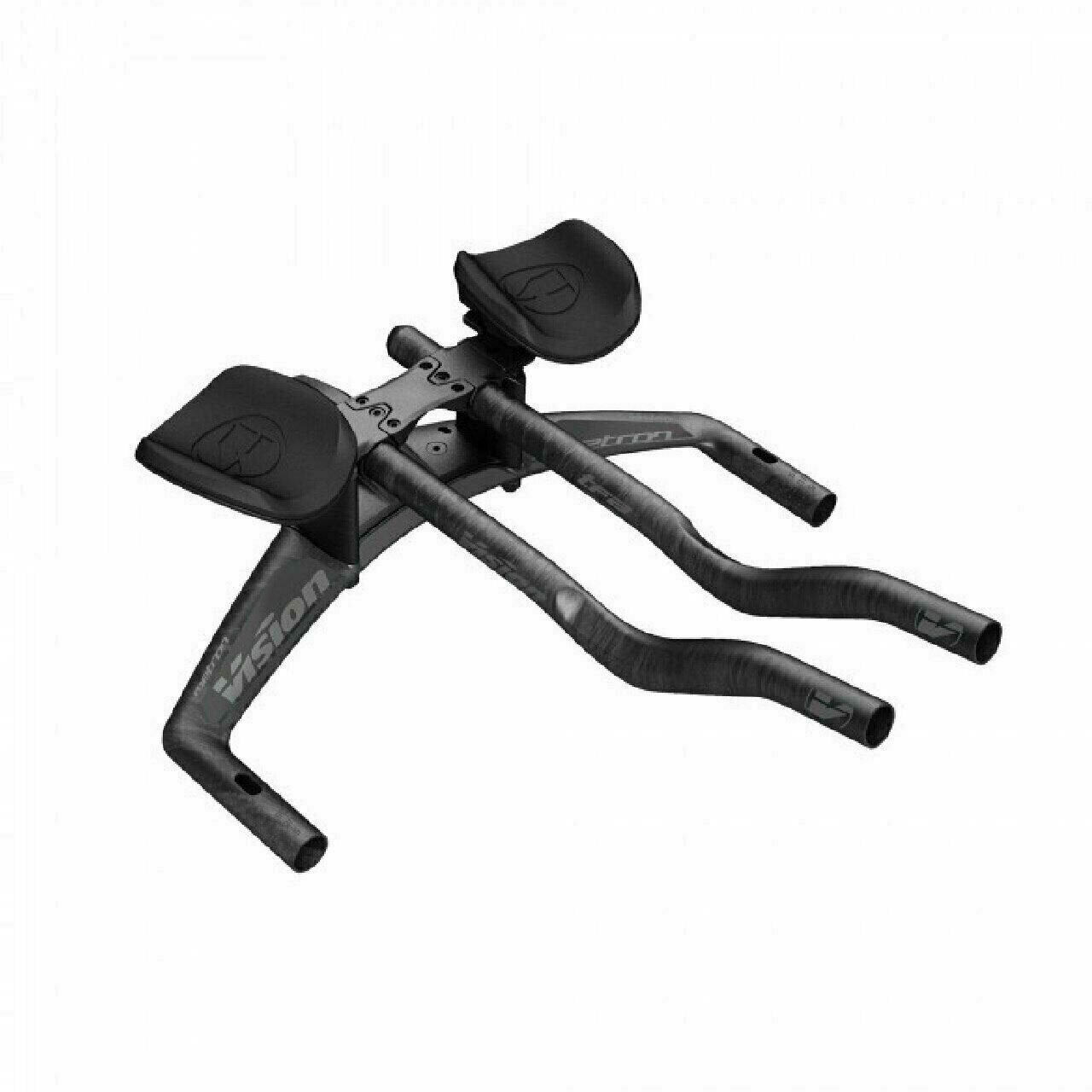

Vision Metron TFA w/ Snakebite Technology Aerobar /Triathlon | J/S-Bend
FIND YOUR FIT WITH THE FASTEST AEROBAR: the next level of adjustability with integrated aerodynamics. The new Metron Aerobar system features a flip -flop carbon wing basebar, ergonomic extensions and a snakebite stem which integrates the system together. This allows for an internal Di2 junction box with internal cable routing along with one of the highest adjustable AM option currently available. Fit increments in various dimensions are the foundation of the Metron Aerobar design and are easily adjustable with no occluded bolts.
• Metron TFA Aerobar w/ Snakebite Technology • The next generation of integrated aerodynamics, fit and adjustability. • Patent pending Snakebite stem allows for flip-able base bar with internal cable routing • Full carbon wing and ergonomic extensions • Normalized fit increments in every dimension • Easy adjustability • Stem allows for internal Di2 junction box positioning and internal cable routing. FINISH • UD carbon finish WEIGHT • 1,155 grams (with stem)

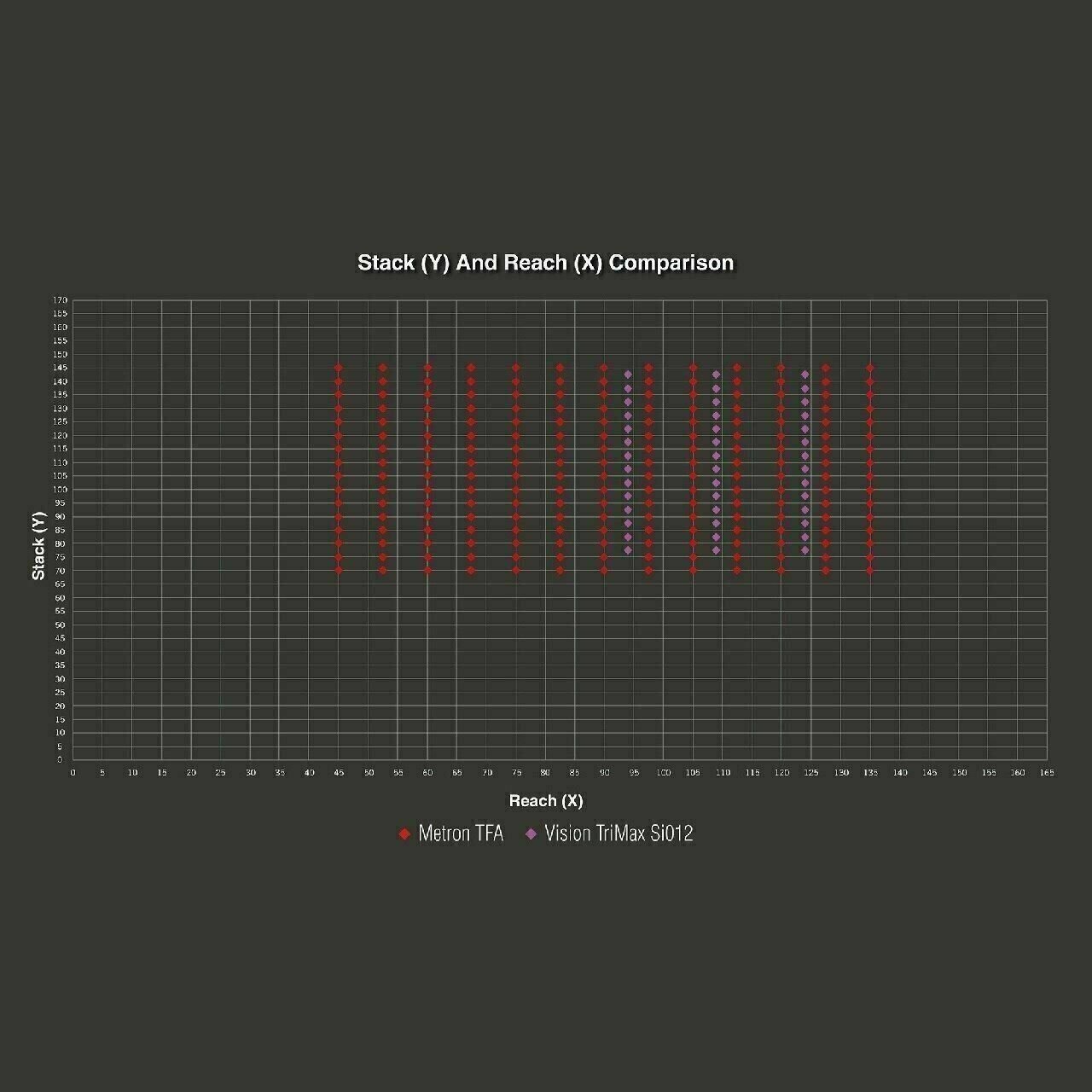

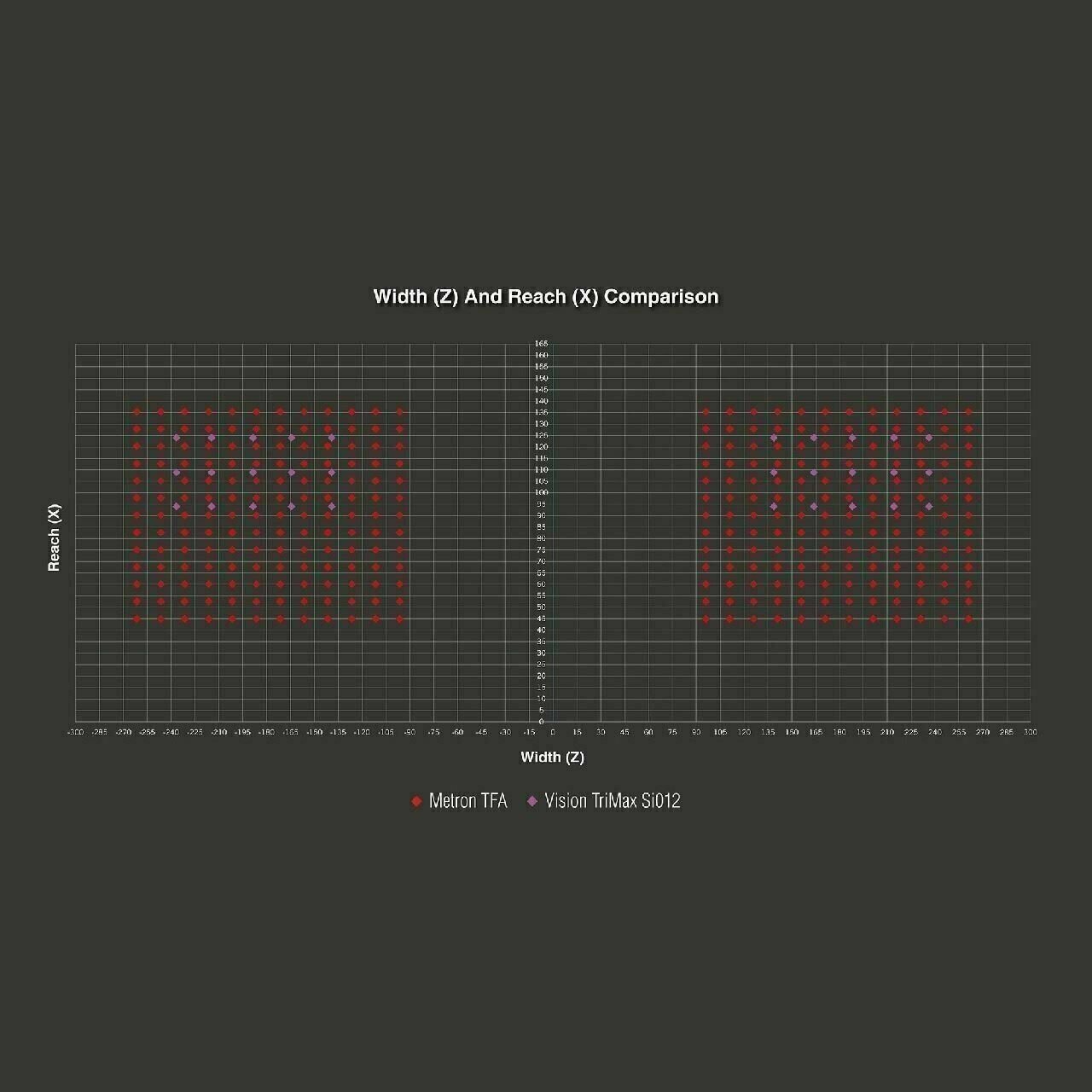

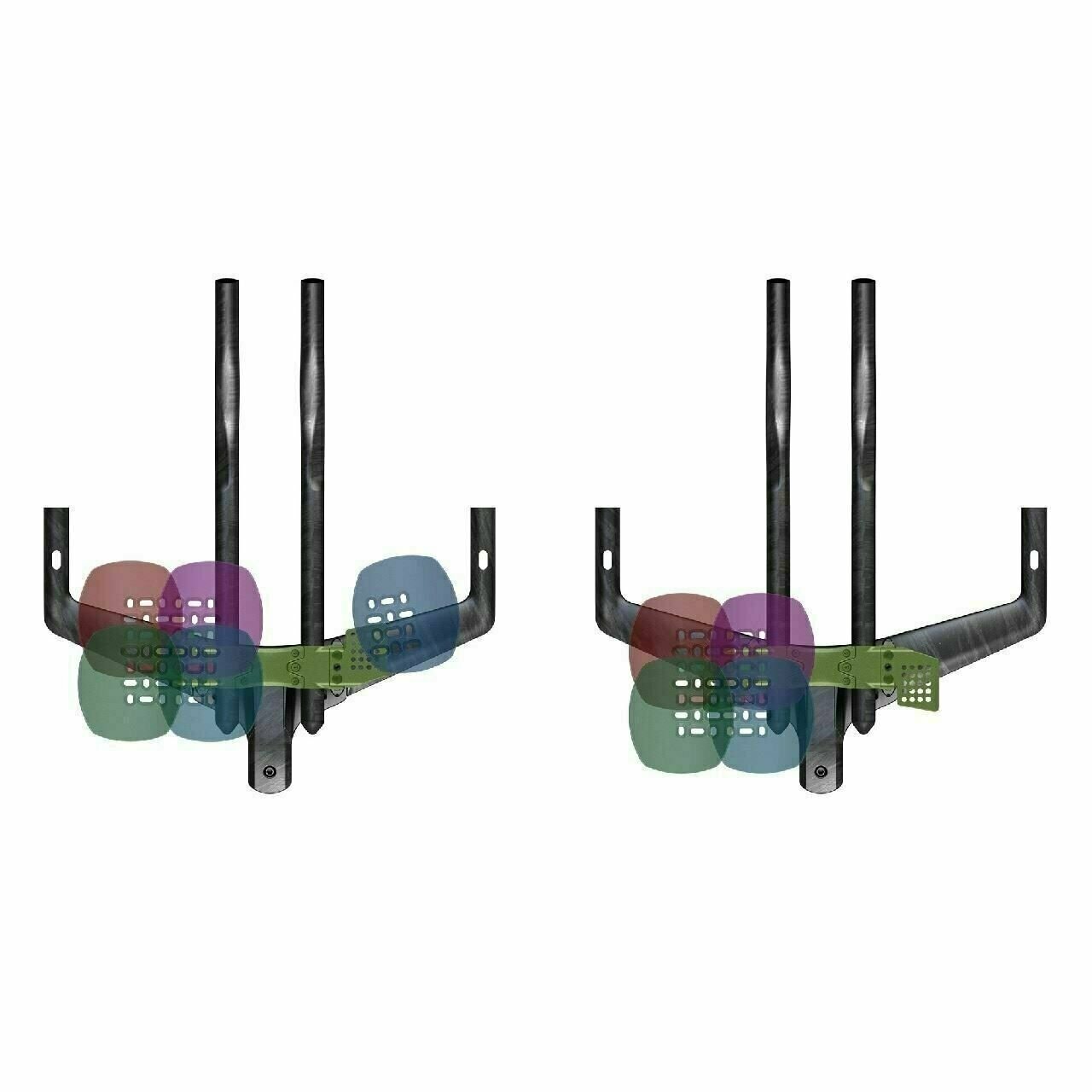

SPEC AND ADJUSTABILITY • 01 Stack 70mm to 145mm (Bottom of the stem at center to top of uncompressed pad - 5mm increments) • 02 Reach -9mm to -99mm (Center of base bar to rear edge of armrest - 7.5mm increments) • 03 Armrest width 210mm to 360mm (outside to outside - 15mm increments) • 04 Extension length adjustment 245mm to 385mm (Center of base bar to tip) • 05 Extension length 412mm • 06 Extension height 60mm (c-c) • 07 Extension angle 35° (12° at extension tip) • 08 Extension width 80mm (c-c) • 09 Base bar width 400mm (c-c) • 10 Base bar drop/rise -25mm / +25mm (c-c) • 11 Armrest rotation 0 - 12° • 12 Bracket tilt adjustment 0 - 12°
